    bpv3_ult
    1,800.00zł

    1,800.00zł

    Shipping in 3-5 days
    Ready to assemble

    One BPv3 to rule them all!

    The first button plate so universal and comprehensive on the market, additionally with a dual-clutch system and USB or SC2 wireless connectivity.

    Connection
    • USB
    • SC2 Wireless
    Carbon fiber
    • Twill
    • Forged carbon

    Ask about product
    Zapytanie dotyczy produktu: Simline BPv3 Ultimate
    * - pola obowiązkowe
    Send
    You will receive an 90.00zł for each item of this product to use on your next purchase.
    Close
    Shipping within 24 hours
    Secure payments
    Return within 14 days
    Delivery from PLN 0

    Available accessories

    + Optional rim

    + Quick Release

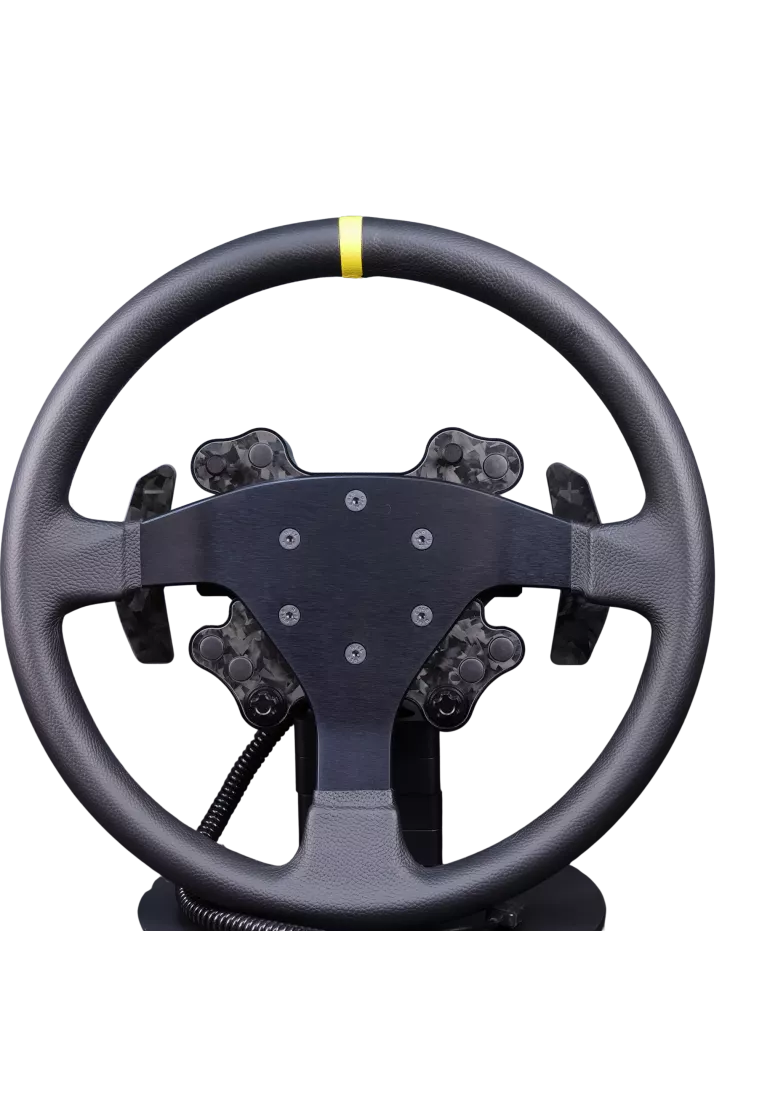

    BPv3 Ultimate

    Infinite versatility:

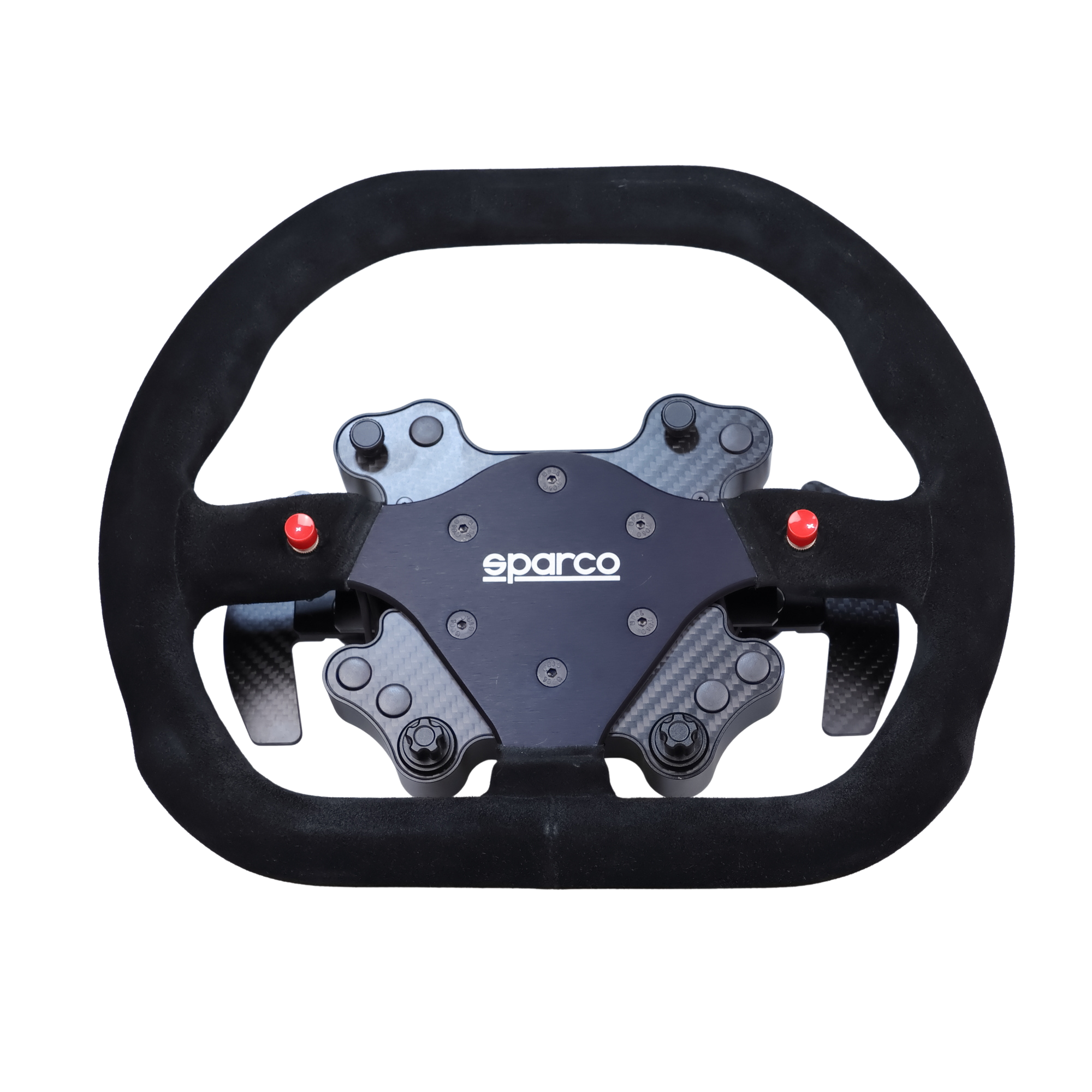

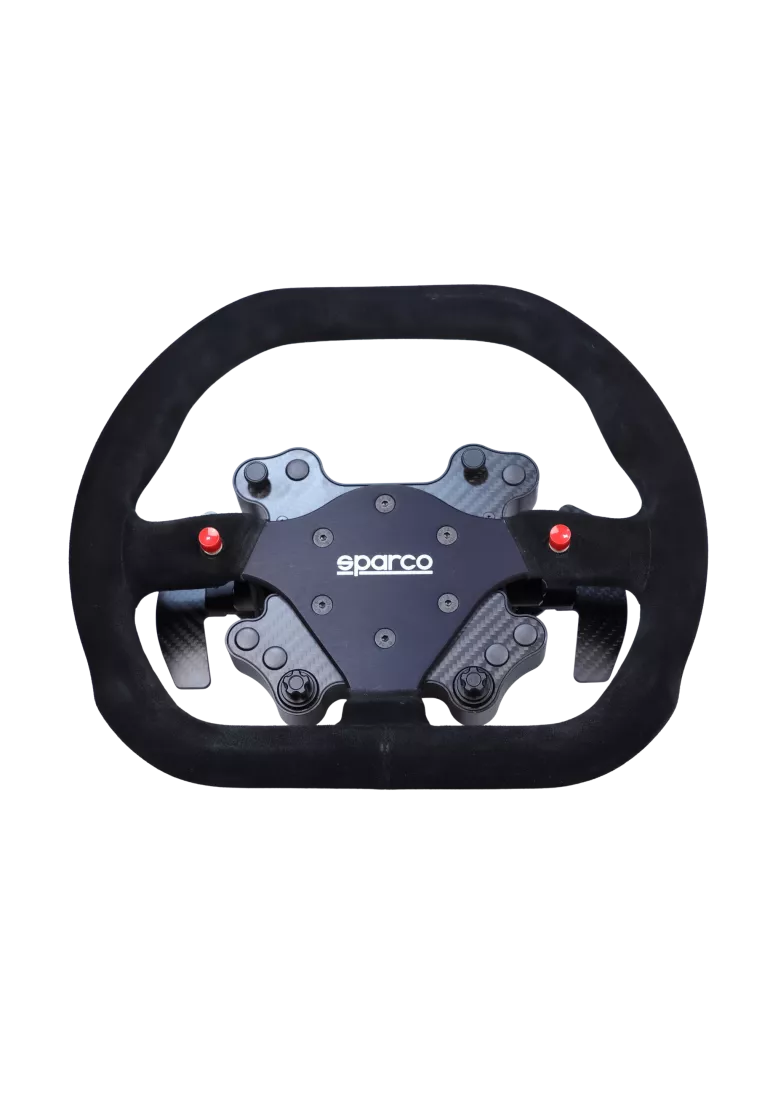

    Sparco P310

    With the original P310 in an open or closed variant.

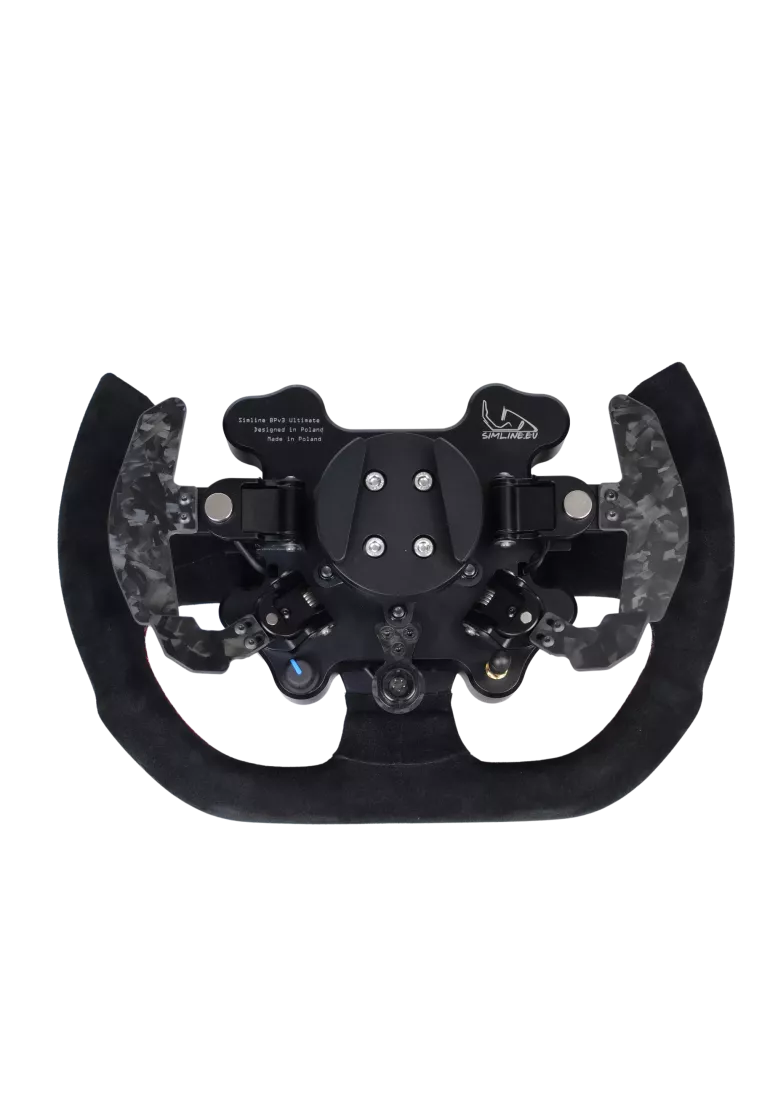

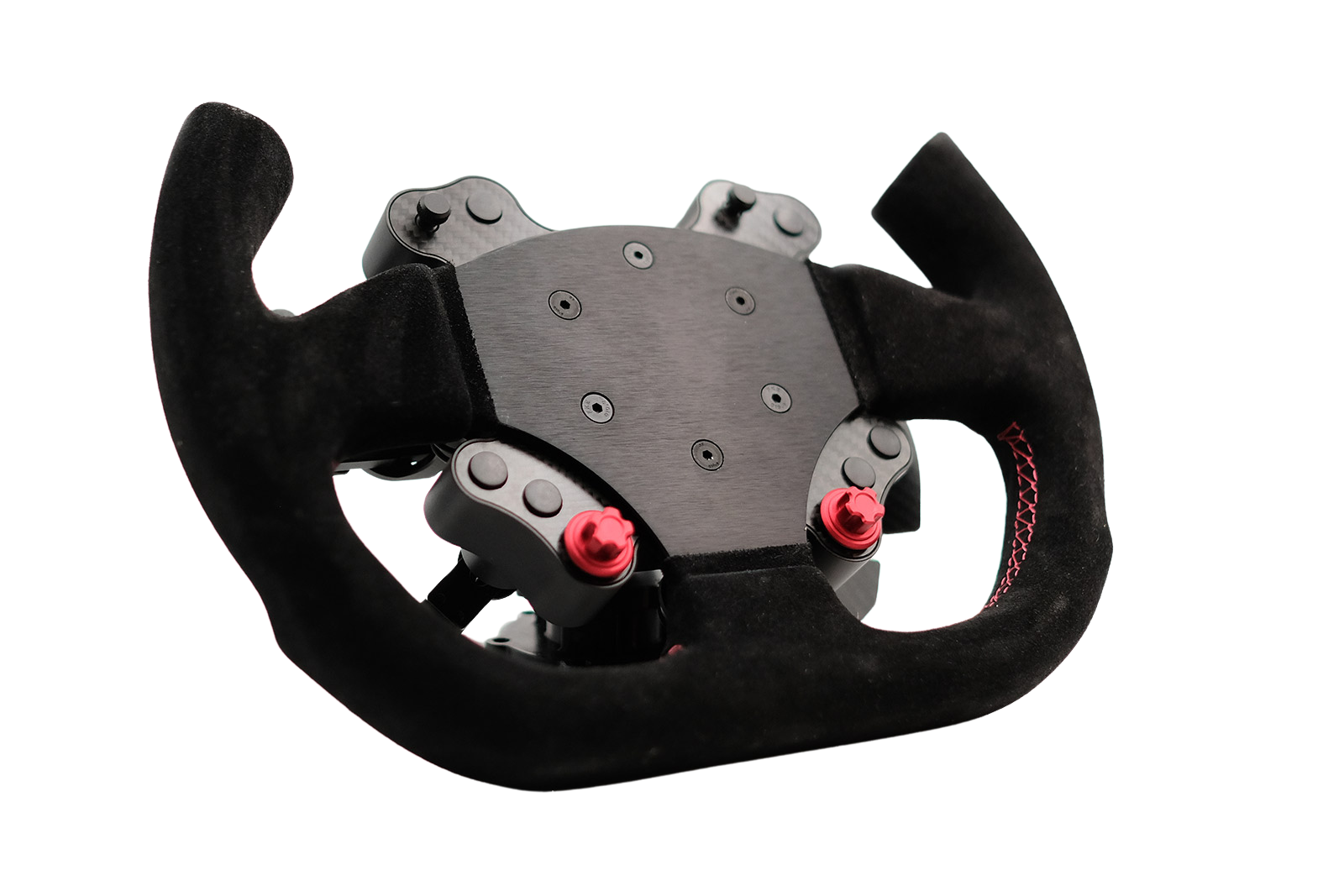

    Simline D320 D-Shape rim

    With the Porsche steering wheel known from our GT3-R or GT3 Cup, also with the Fanatec replica.

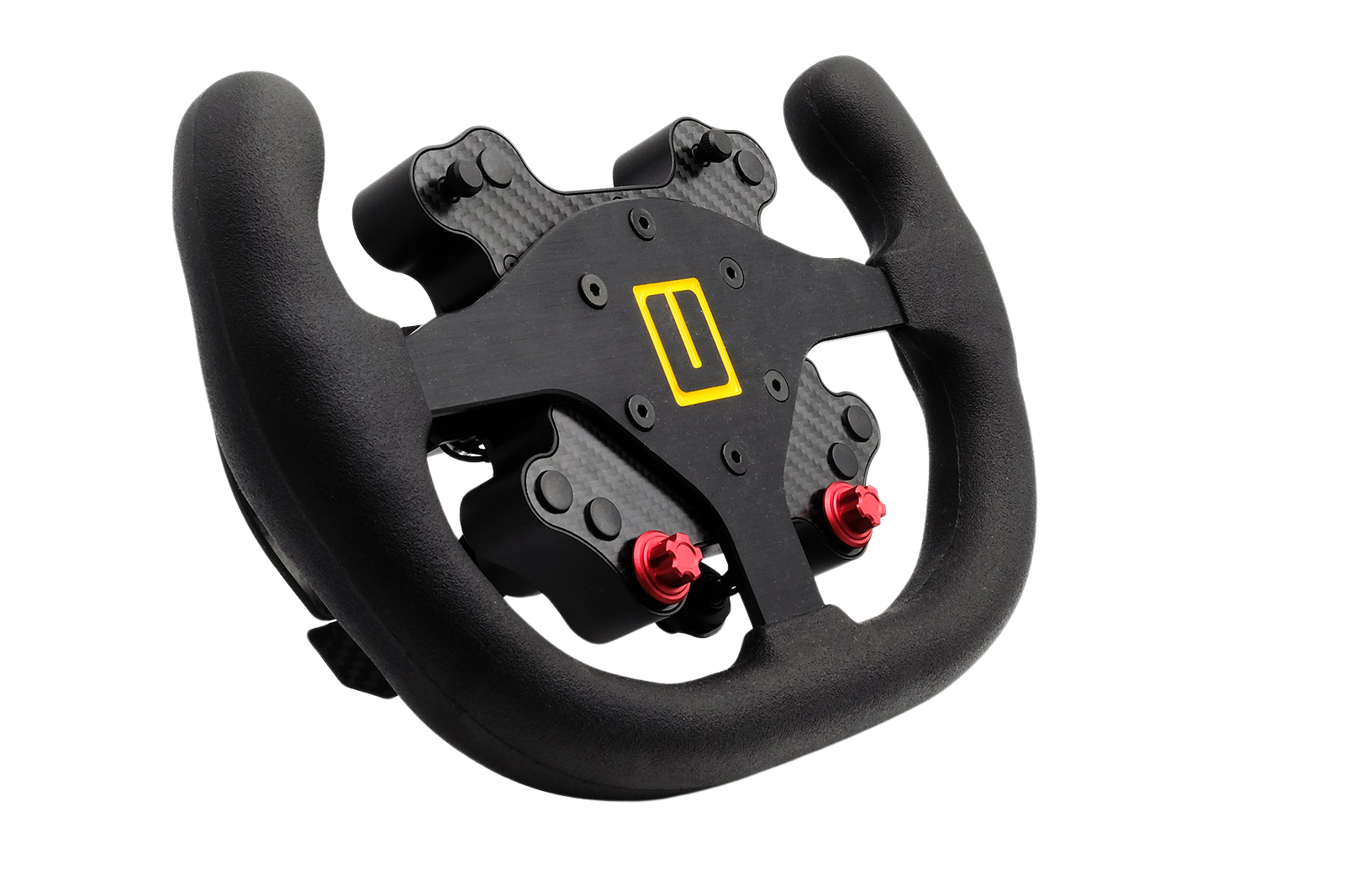

    Turn Racing Rim

    With the steering wheel from Turn Racing.

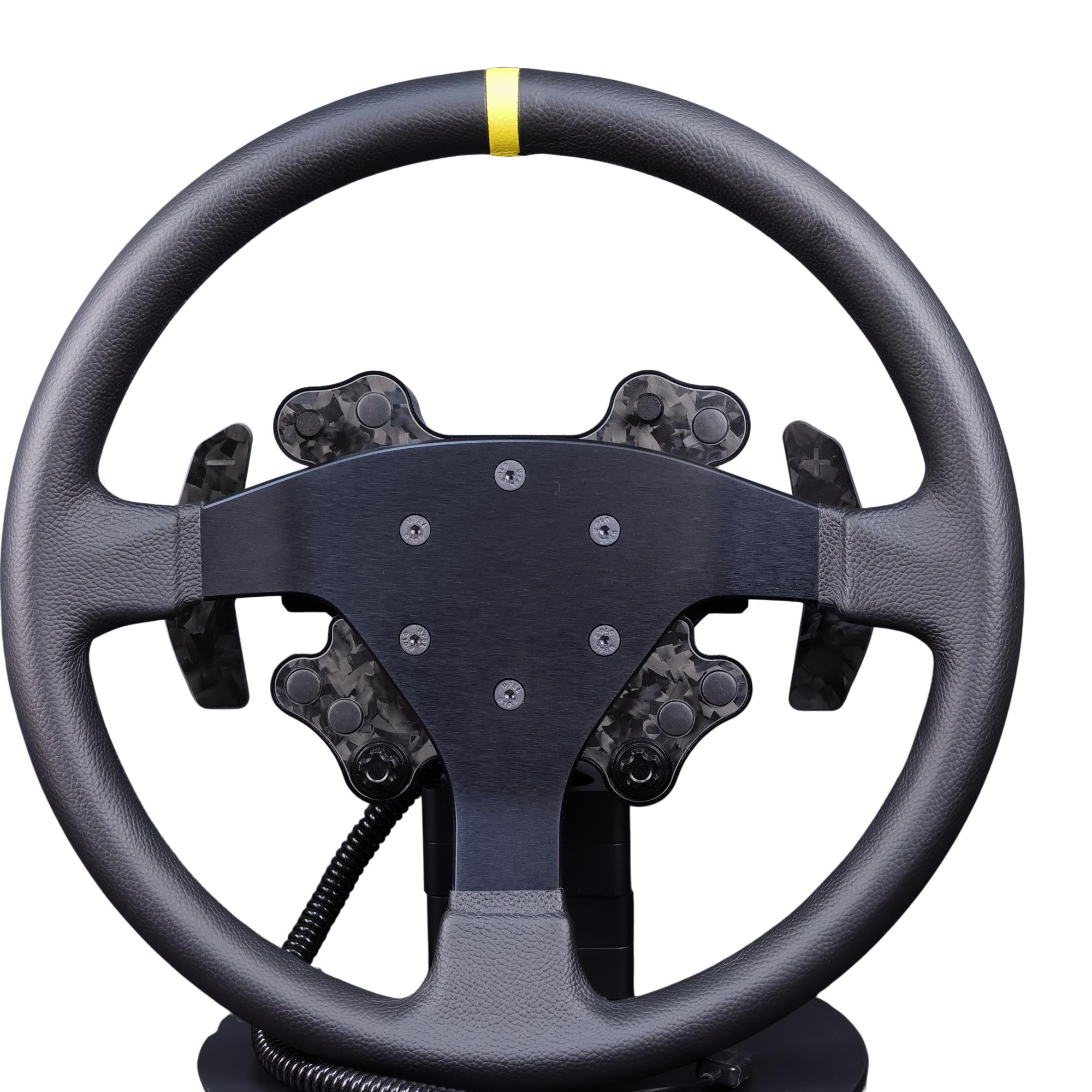

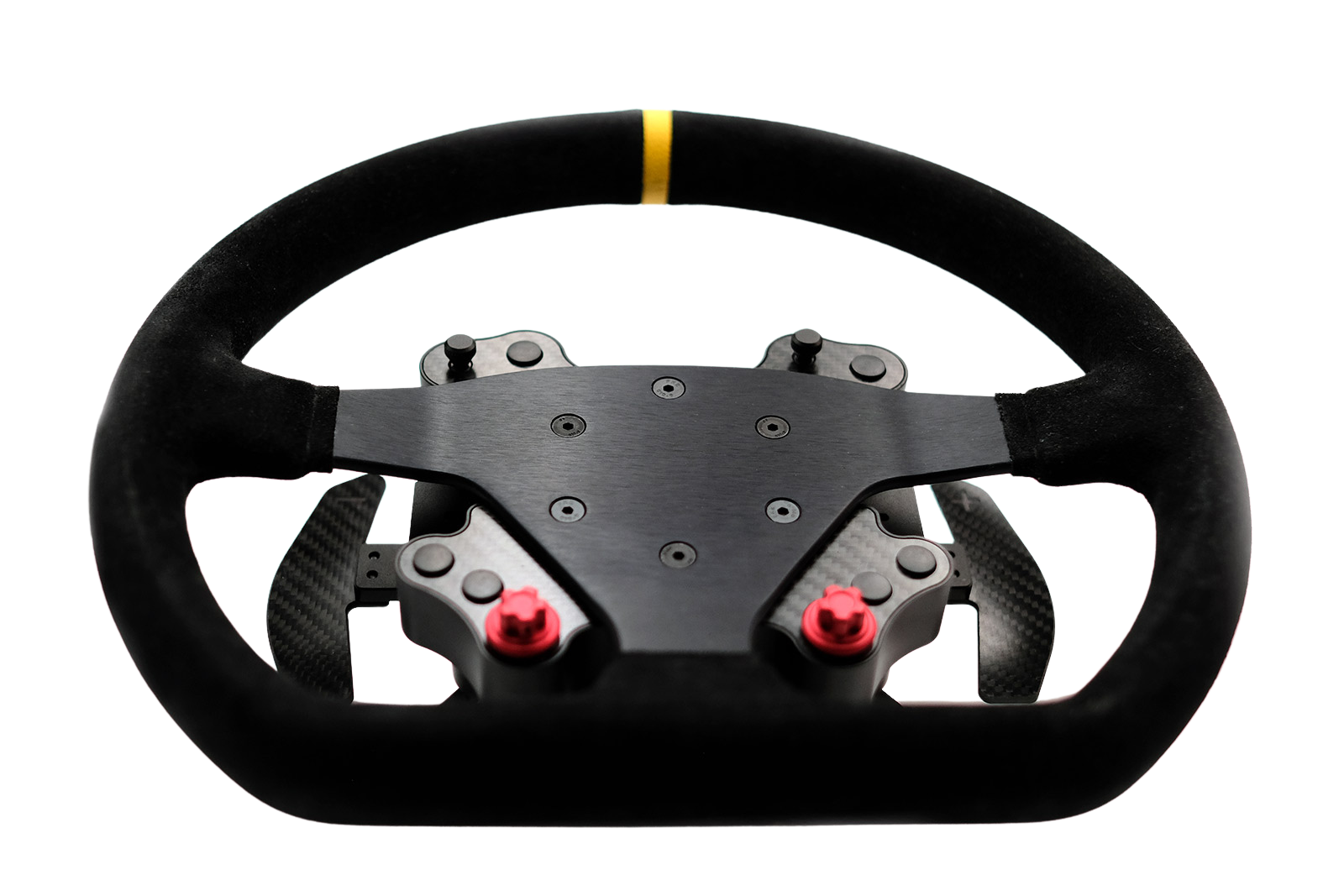

    Simline R320

    With our round steering wheel, available in both 320mm and 350mm sizes.

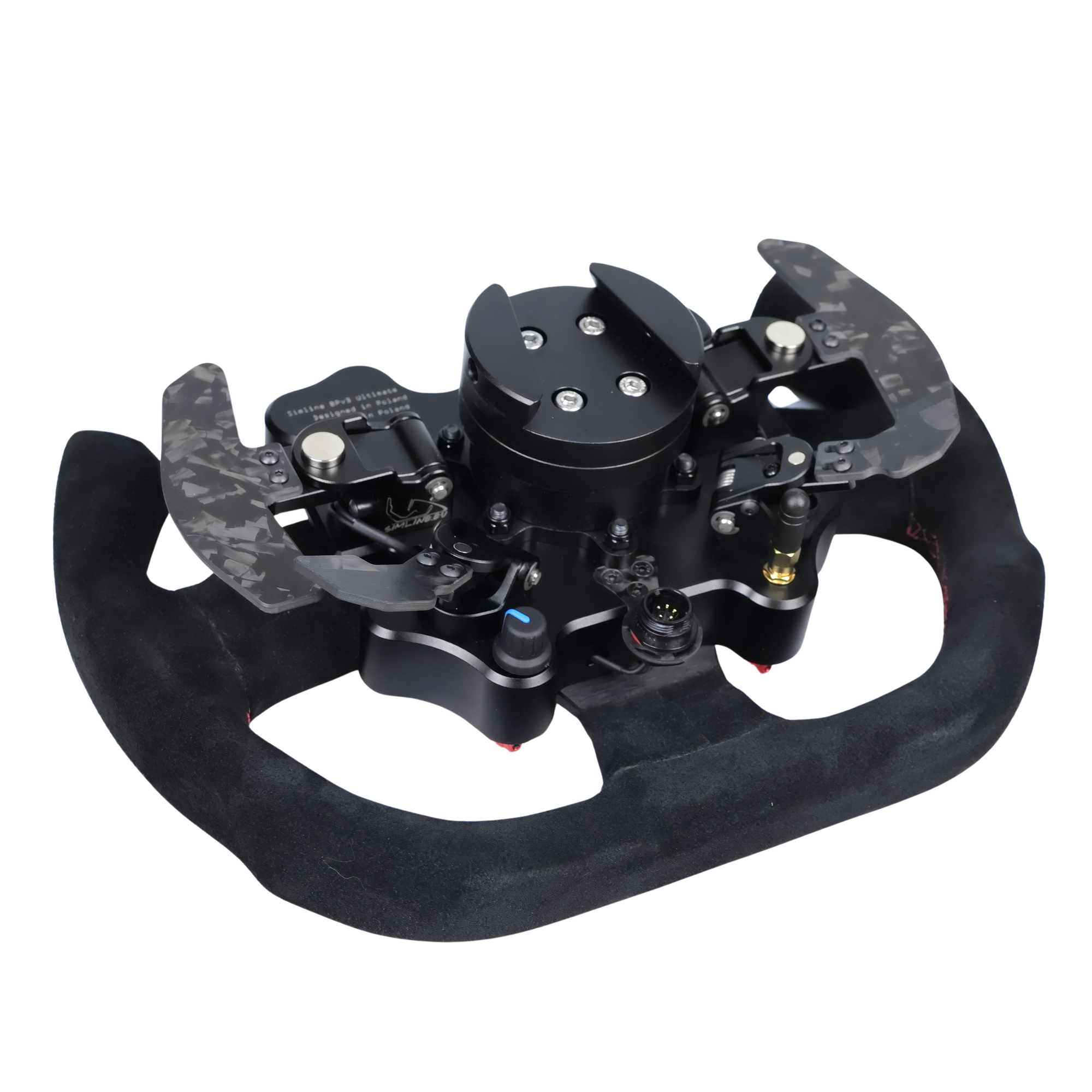

    Simline U300 TC

    With the best ergonomically shaped steering wheel on the market, once you try it, you won't be able to go back to others.

    Fanatec GT, R300, GT3 Cup

    DimSim F320, RMD 320, Porsche GT3 Cup OEM

    Momo Jet32, Mod 30, Team 30, Tuner Black, Motamec, Mazda MPI, MPI GT13

    OMP Alu S, Superquadro, Targa, Asso, Kubic, Superleggerro, Supertourismo, Trecento, Velocita

    Sportline D320, R320, R350, U300, Competition, Imola

    Sabelt SW733, Sparco P300, P310, P323, L360, L999, Lap5, P353, R383

    Turn R305, R20, Cube Controls, SRB and many more.

    Compatibility

    This is the most universal button plate on the market. I'm not able to provide a full list of compatible steering wheels, but if you have any doubts, you can contact us at [email protected] with the model of your steering wheel, and we will check it for you.

    Compatible rims from our offer:

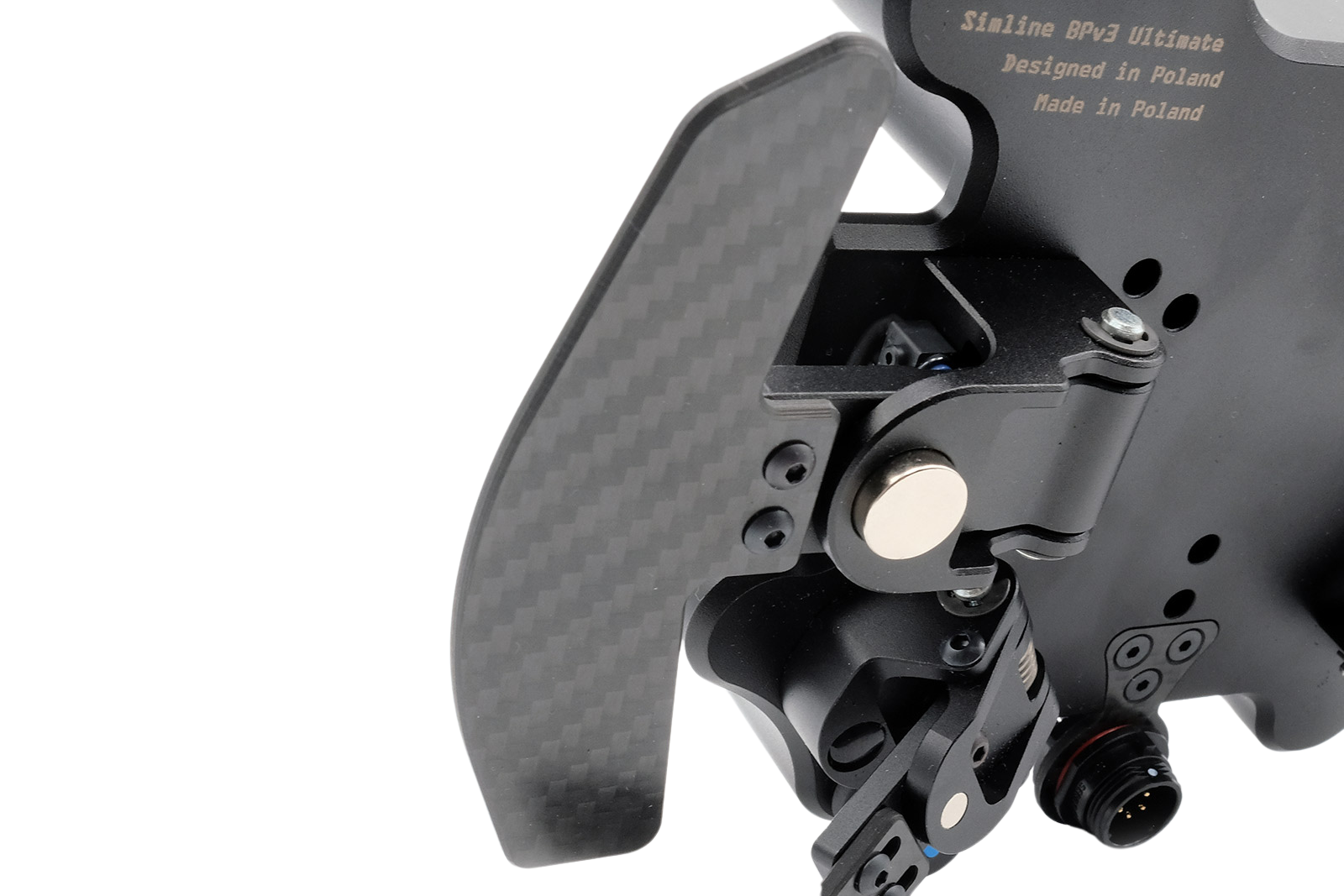

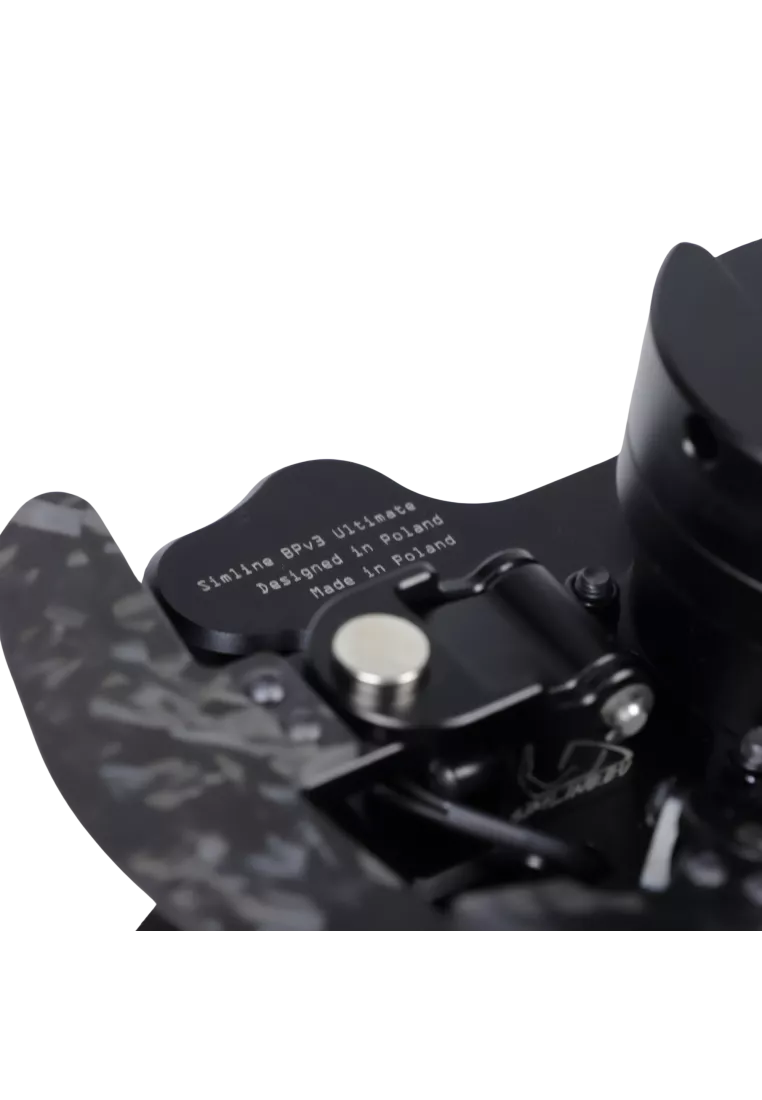

    Magnetic shifters

    As in all of our steering wheels, we use our gear shift mechanisms made of aluminum. They have been tested in hundreds of steering wheels, not only for simulators. They provide a strong and excellent feeling when shifting gears.

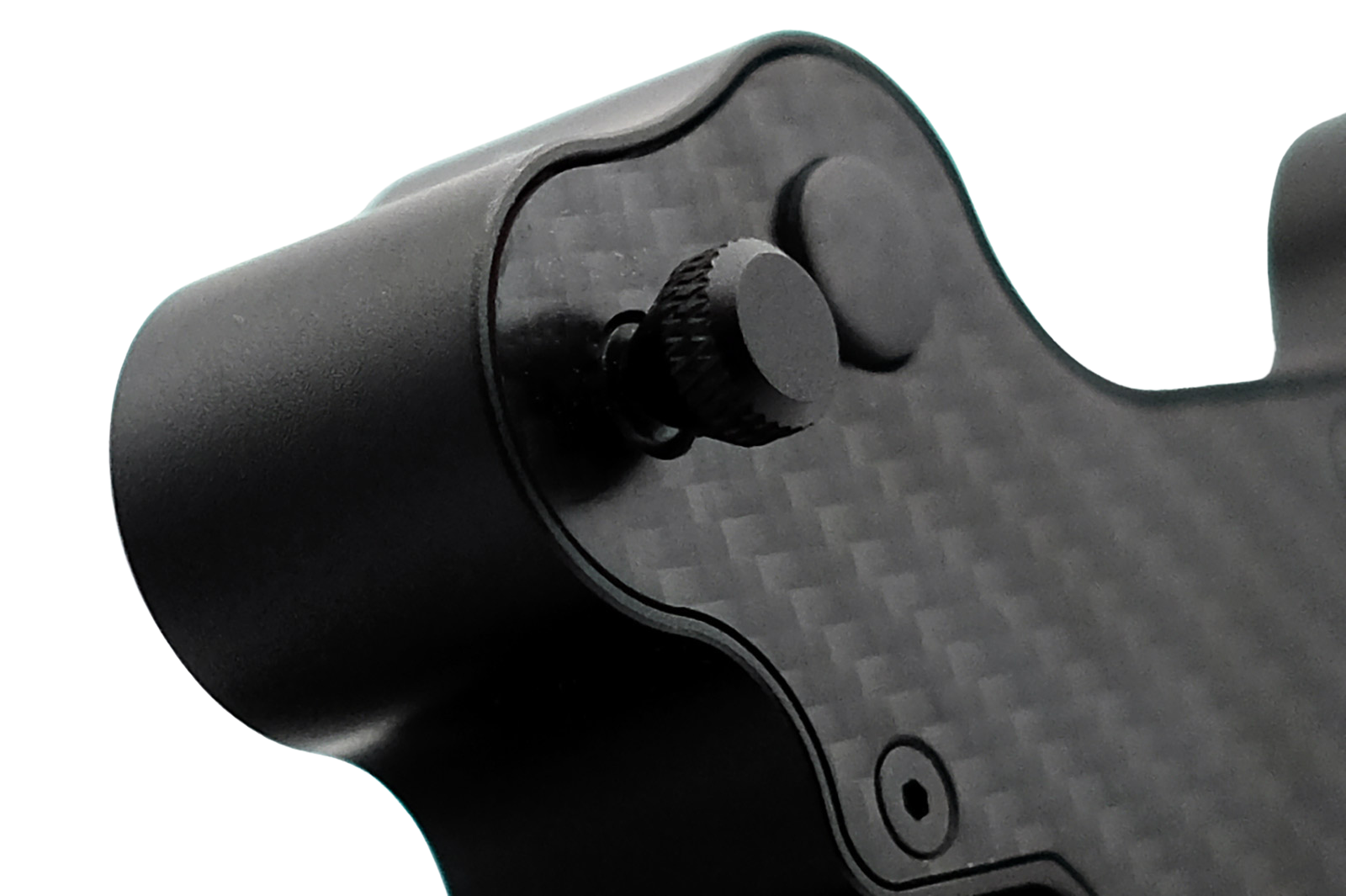

    2 funky switch

    Enhancing the functionality of this button plate with an additional Direction Pad with an encoder and a button in one, ideal for controlling Menu, Pit Menu, or Black Box, with the encoder's rotation suitable for adjusting Brake Balance. The second function key serves as regular buttons to ensure easy assignment to any function in the simulator.

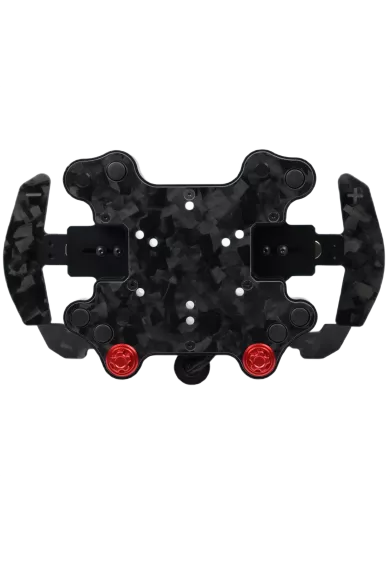

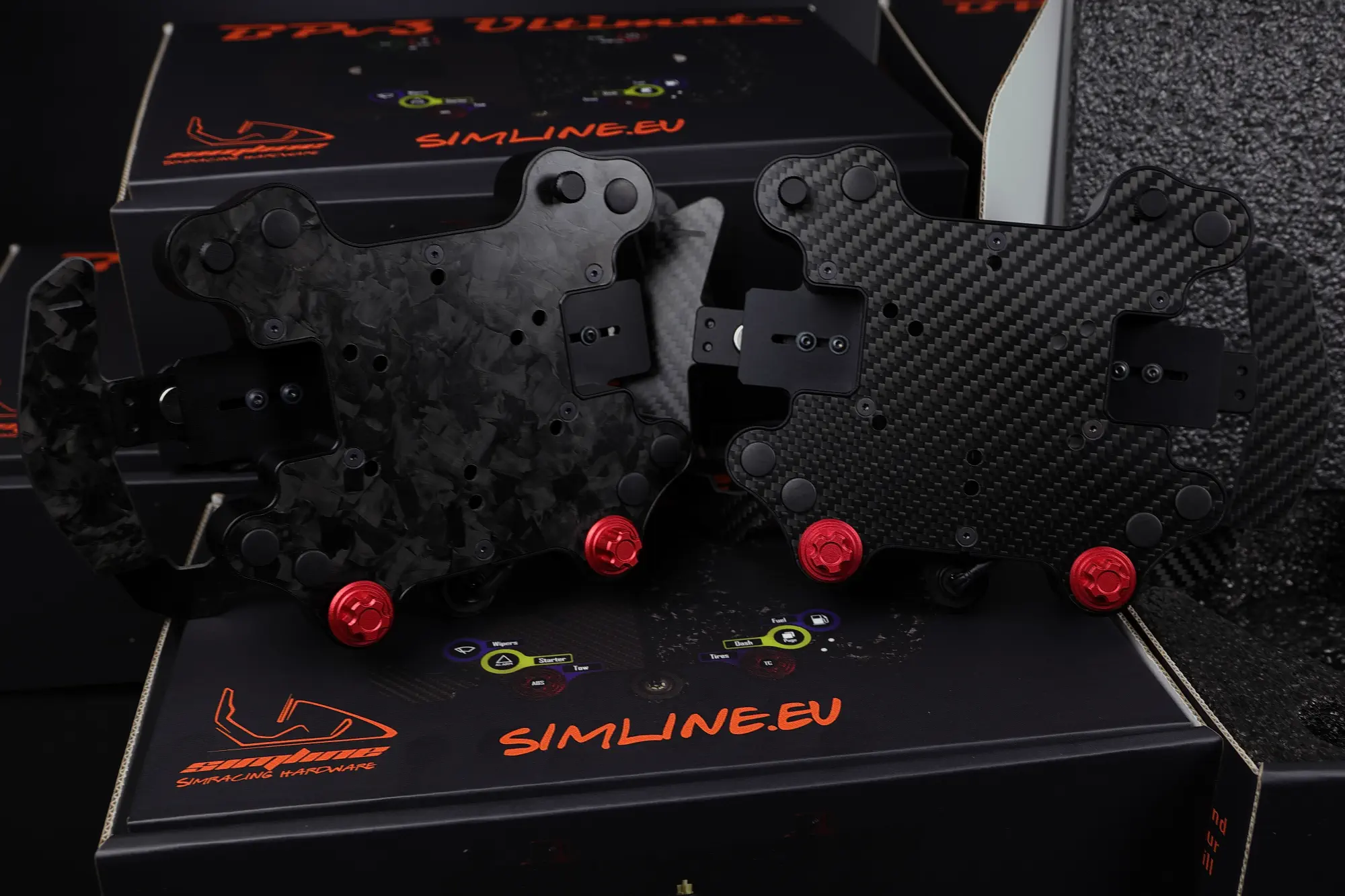

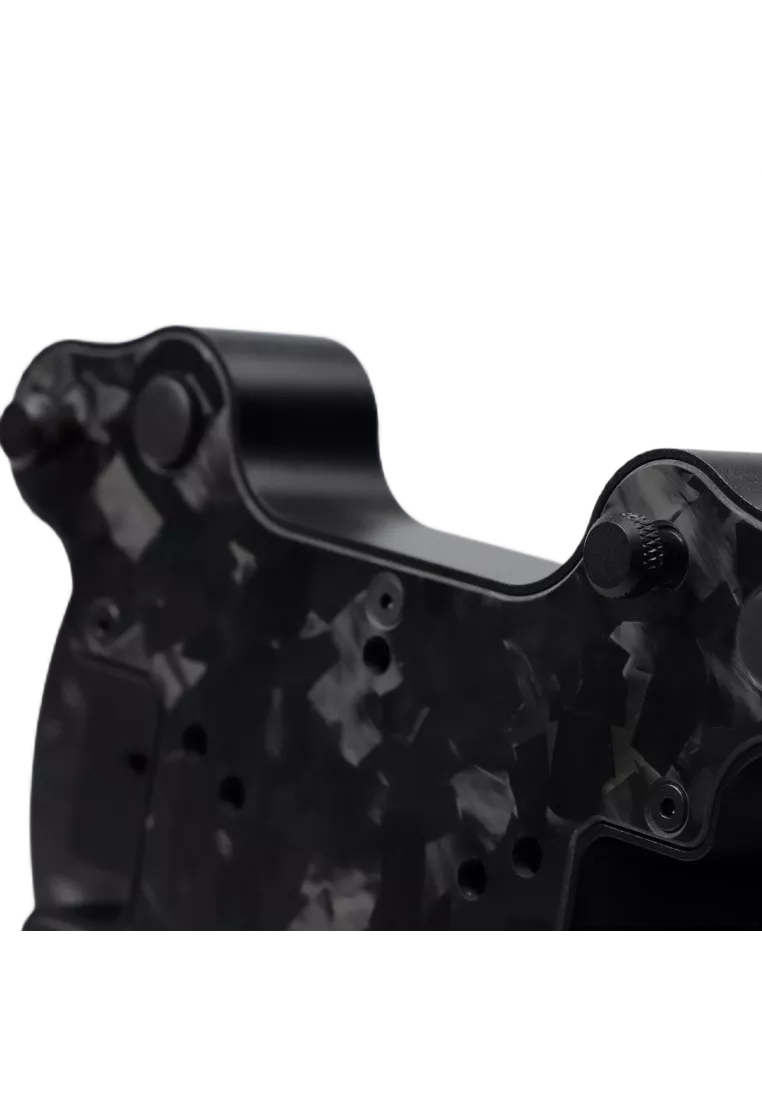

    Various carbon fiber variants:

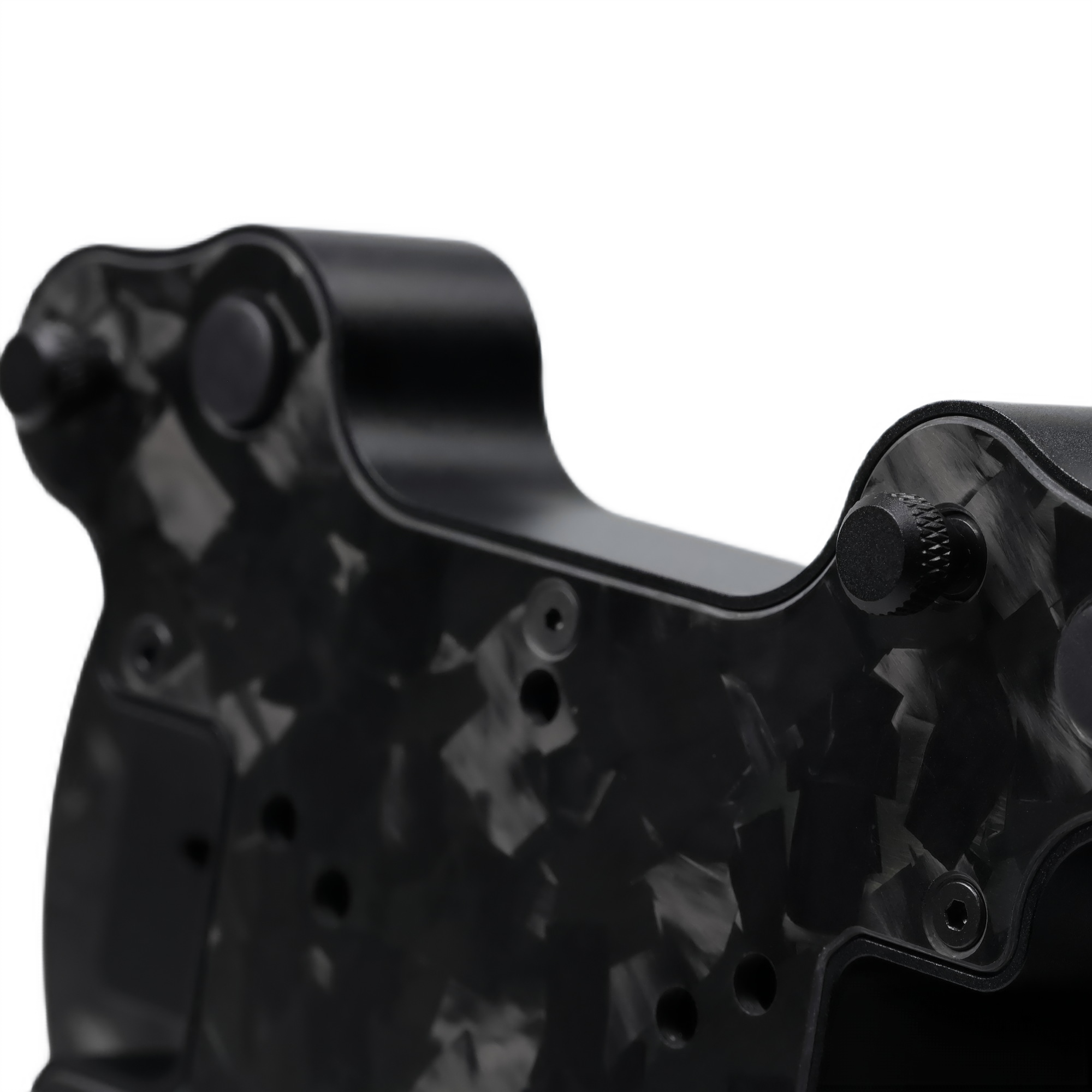

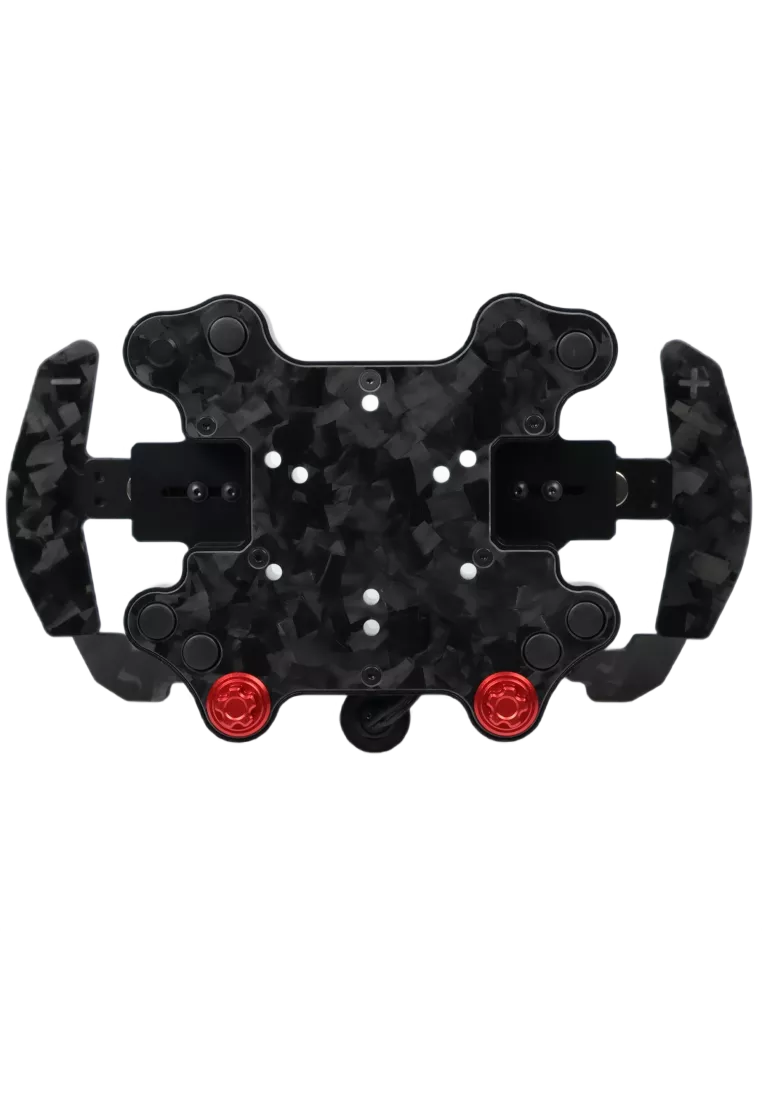

    Forged Carbon

    Twill

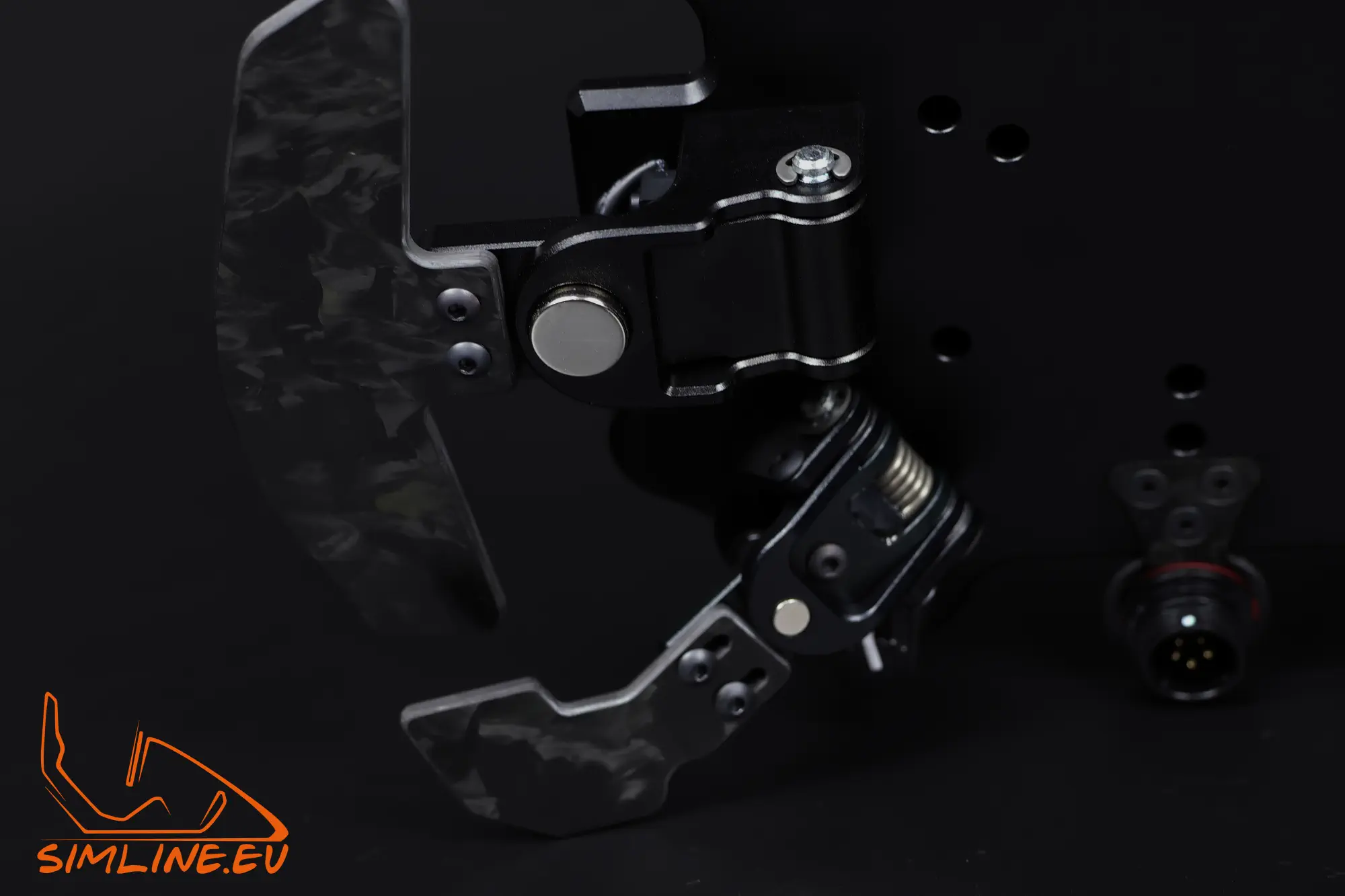

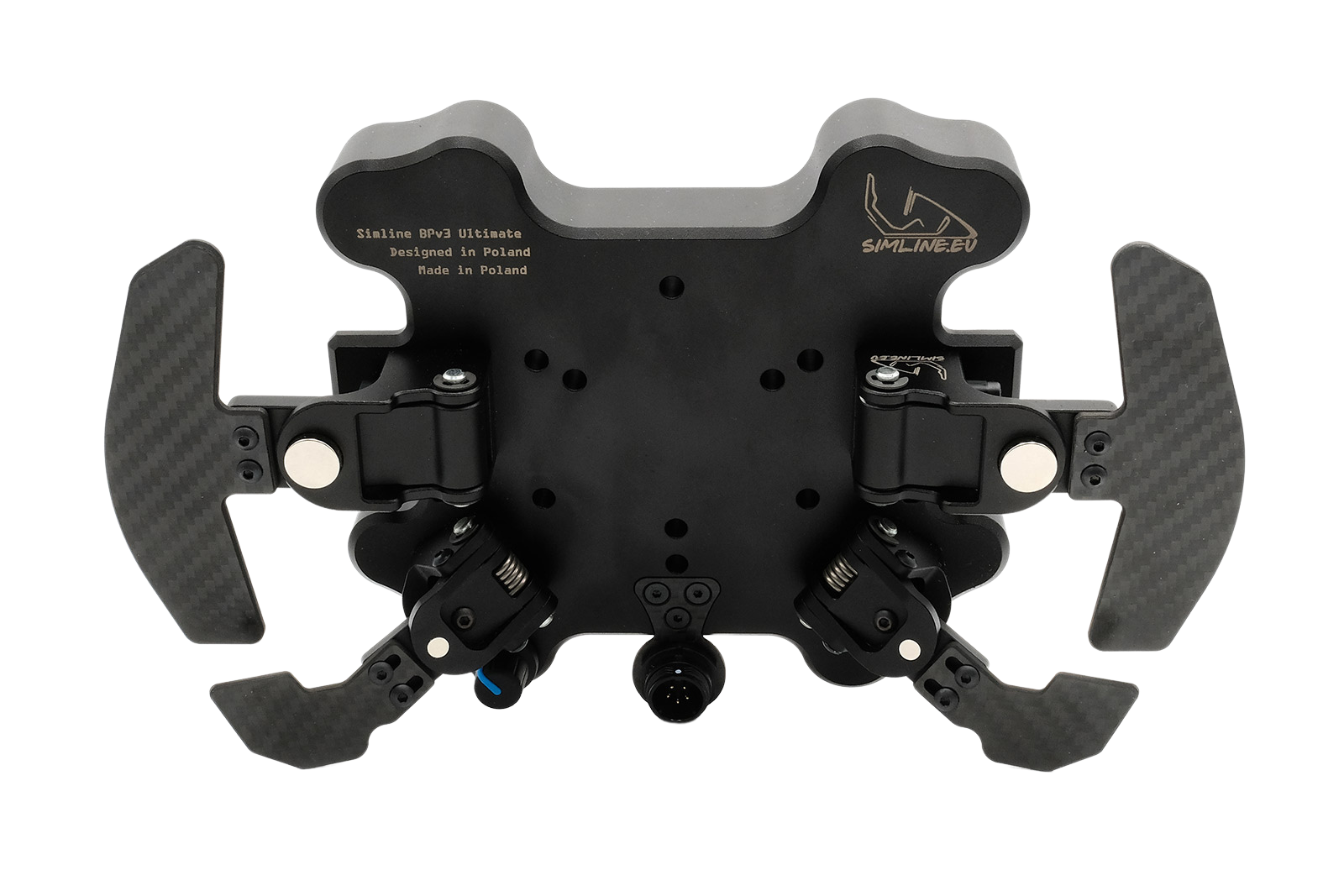

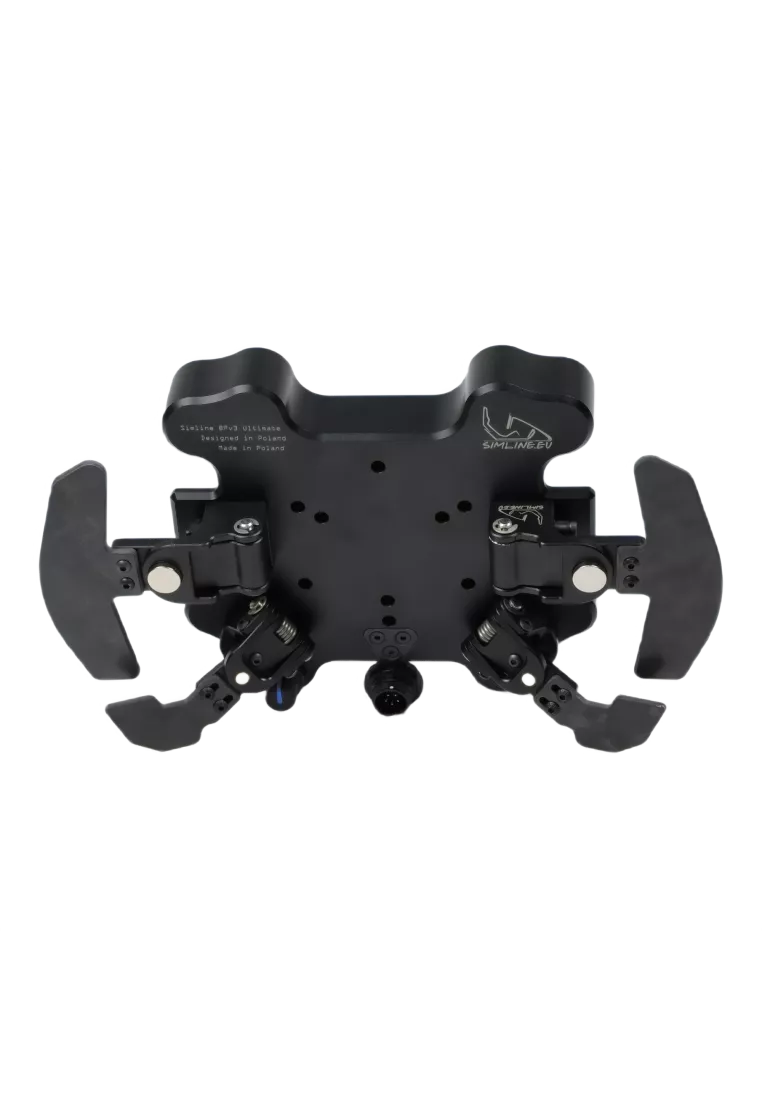

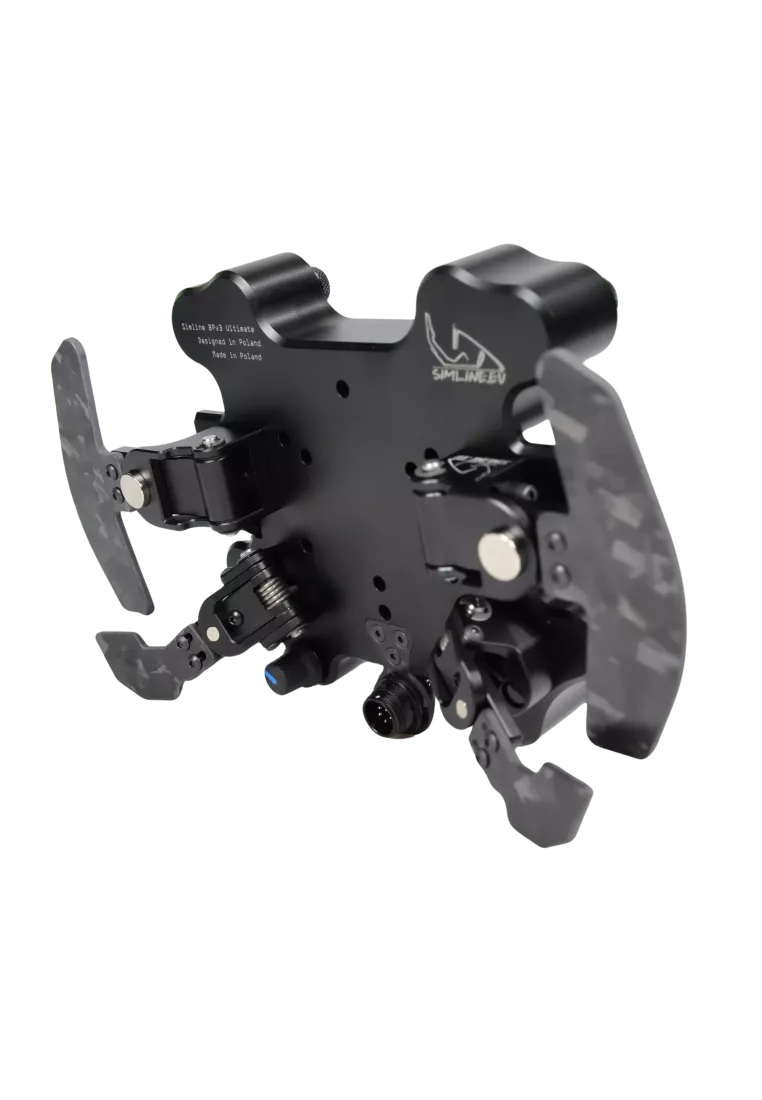

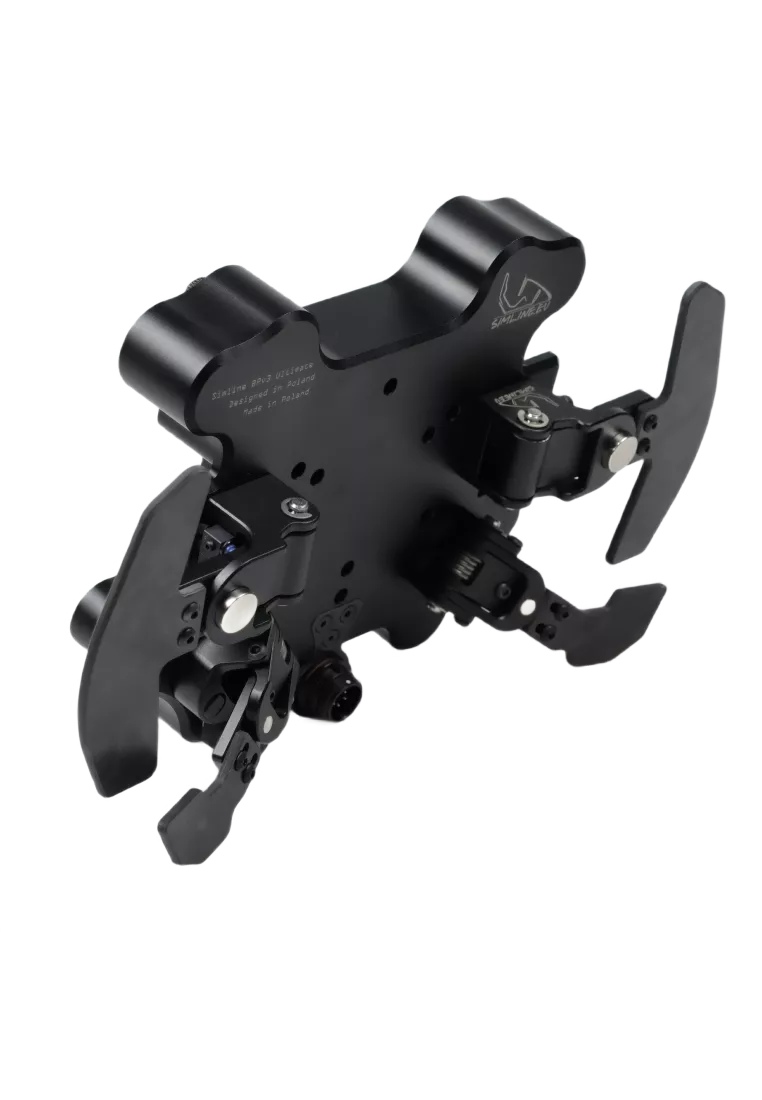

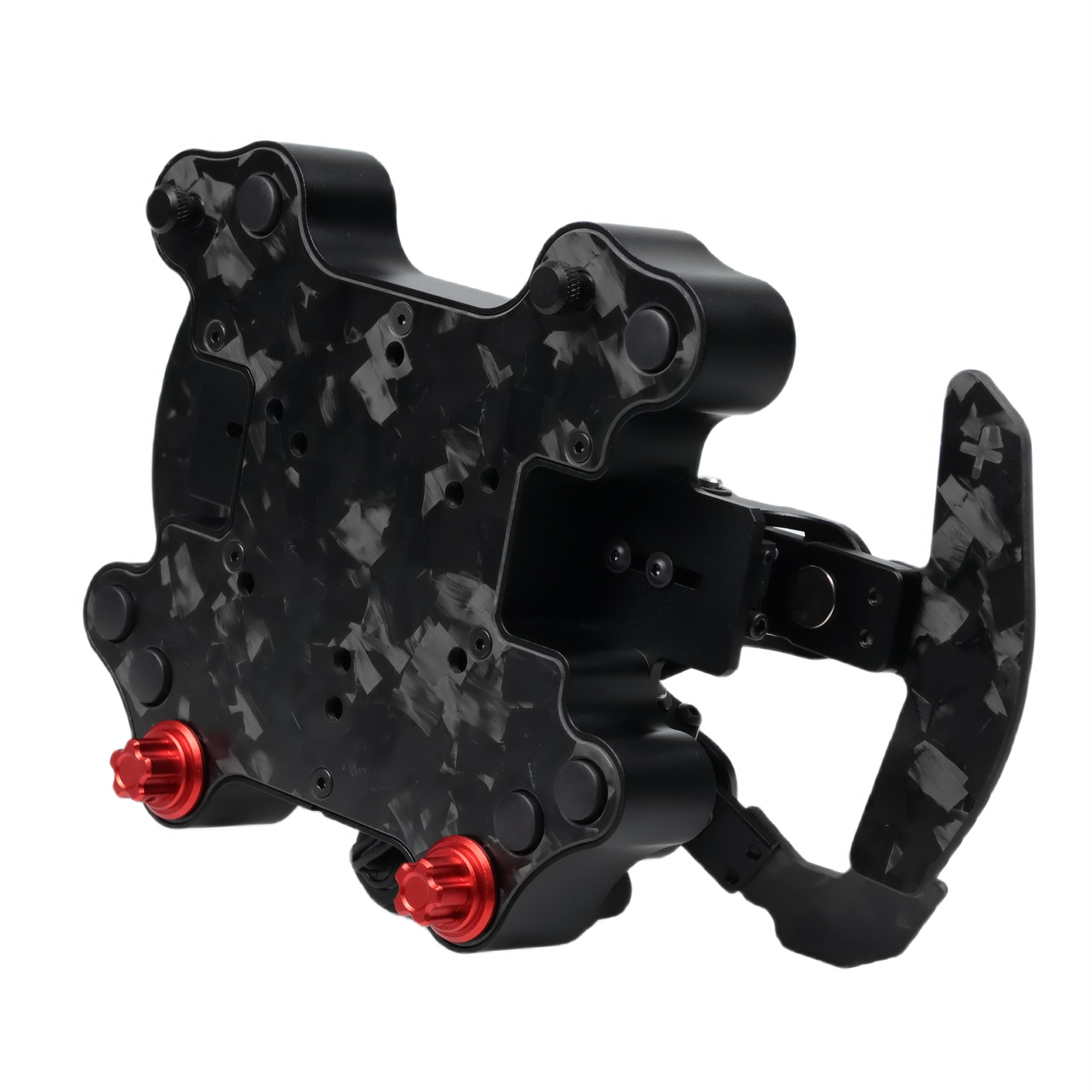

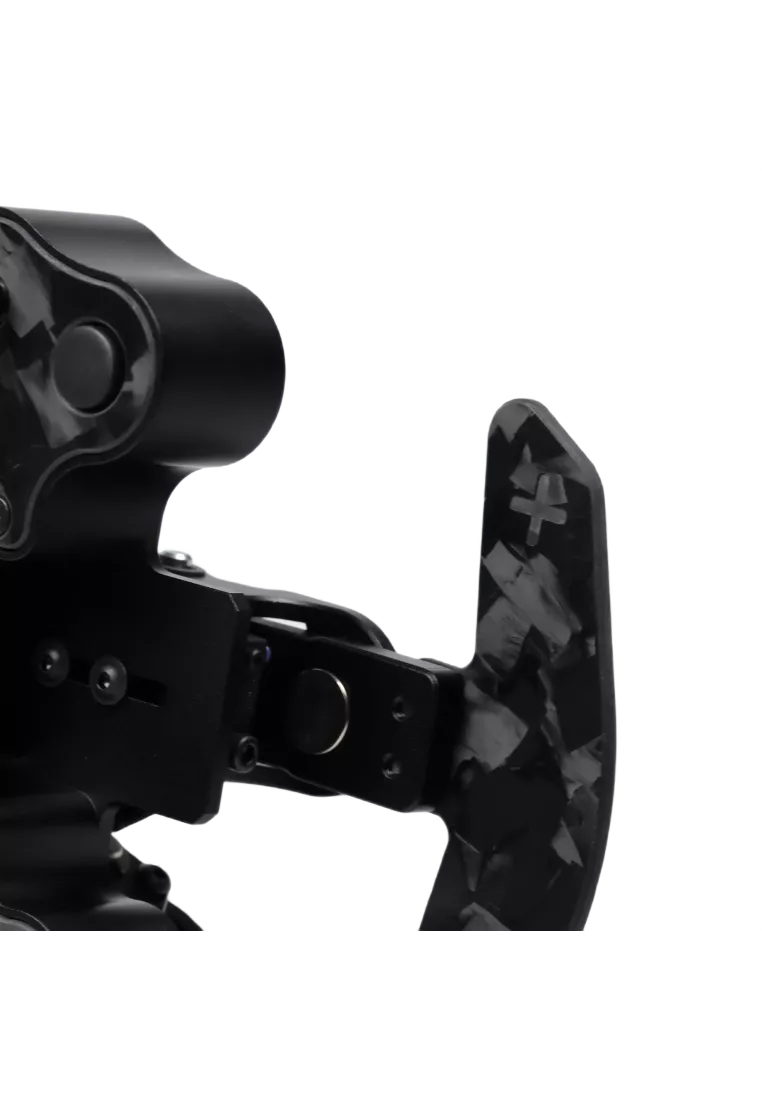

    Dual Clutch

    Dual-clutch system that allows you to utilize the full traction of your car. One of the clutches is adjustable using a potentiometer at the rear, incredibly precise. Our bi-directional system has allowed us to utilize the full potential of the Hall sensor.

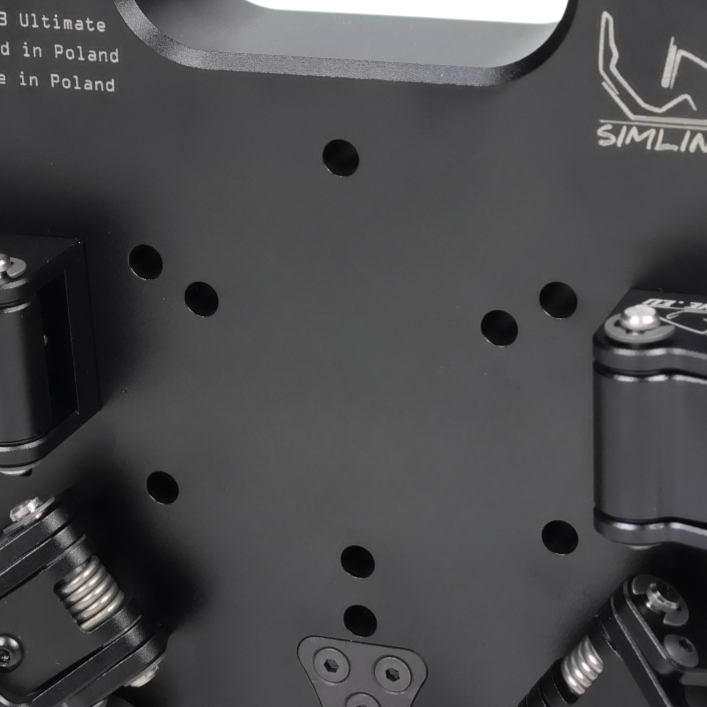

    2 PCDs

    Our BPv3 includes two bolt patterns, 3x50.8 and 6x70, in the set, allowing you to use it not only with large steering wheels but also with formula-style wheels or smaller rims.

    Motorsport switches from APEM/MEC.

    In this BPv3, we've used automotive-grade switches from the renowned manufacturer MEC, which is part of the APEM group. These are exactly the same switches found in TCR-class cars, with a actuation force of 3.5Nm.

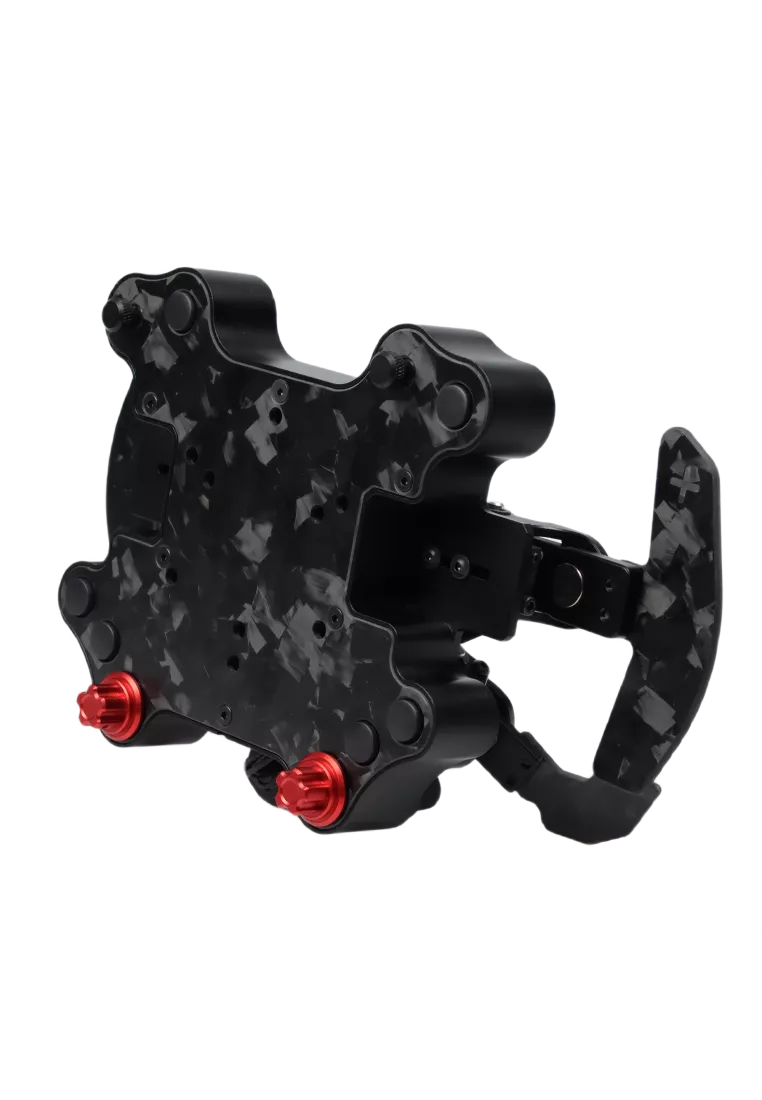

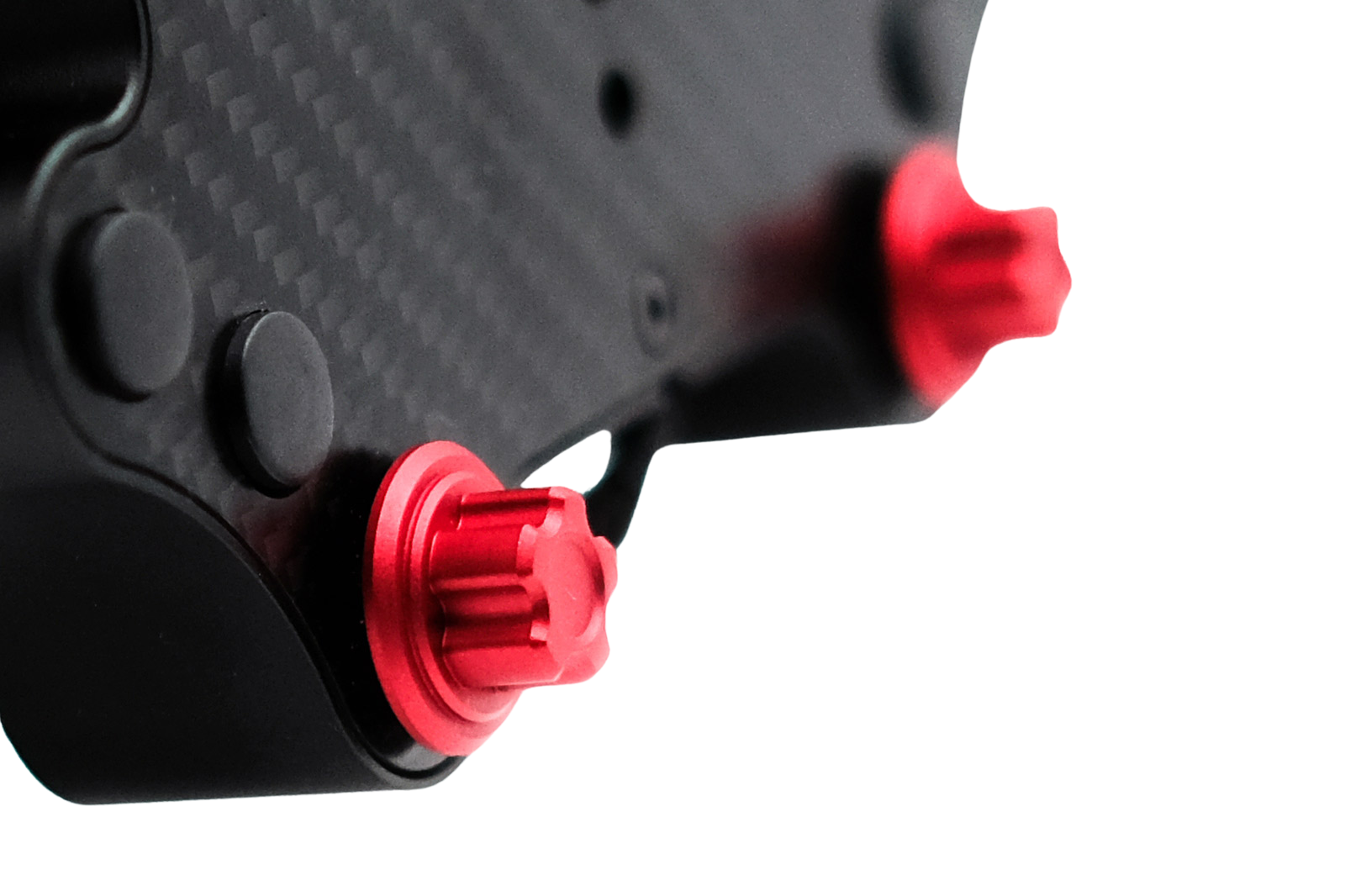

    BOURNS encoders

    In this project, we've used BOURNS encoders with a built-in button. Naturally, we've selected those with the best feel. They're highly durable and provide a satisfying click with each turn. The knobs are our own design, crafted with CNC aluminum, sandblasted, and anodized to add a few positive design points.

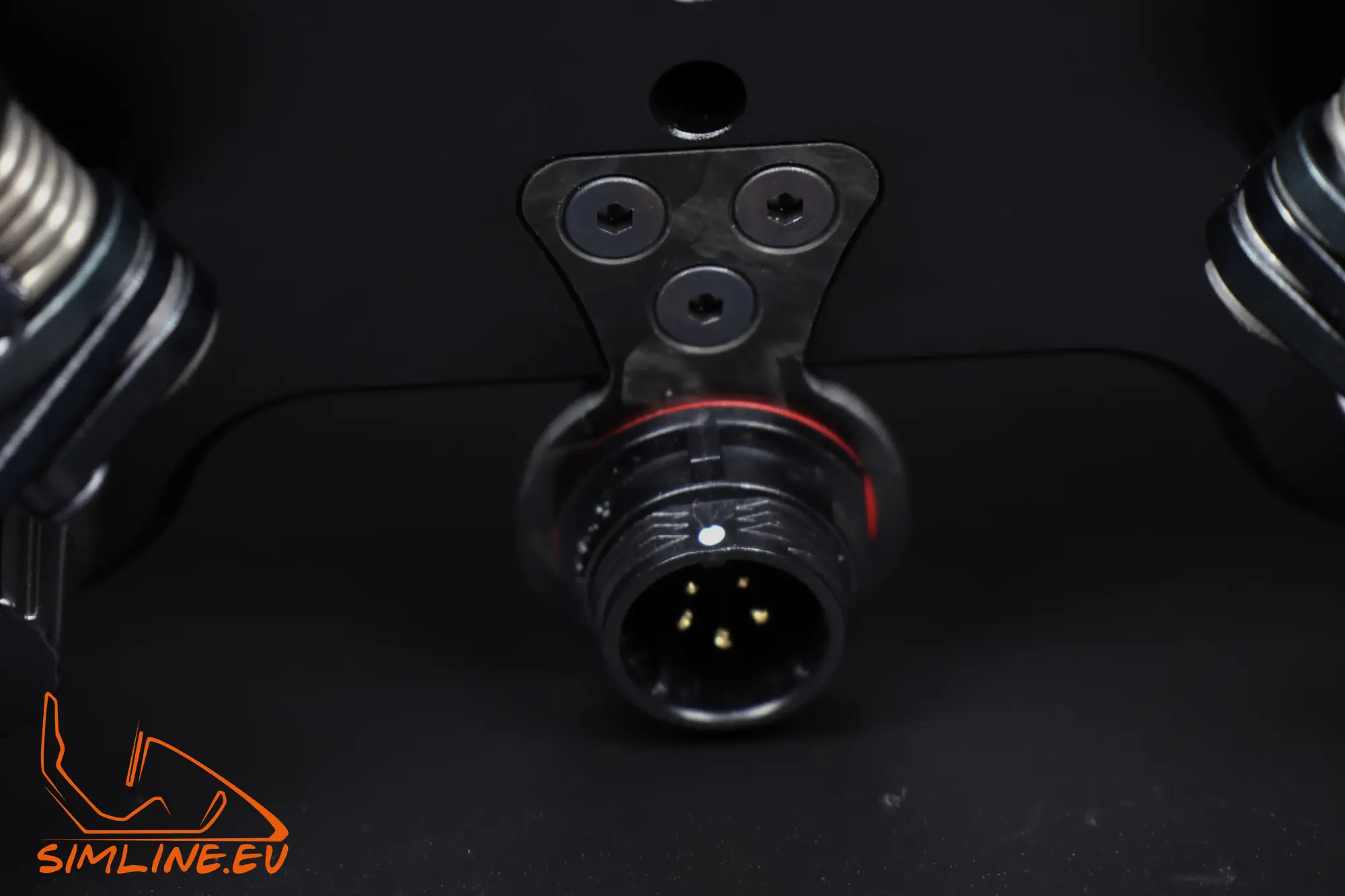

    Detachable spiral cable

    As it is known, spiral cables are the weakest part of USB steering wheels, which is why our steering wheels feature a detachable cable, allowing it to be easily replaced if necessary. An alternative to the cable is wireless connectivity for Simucube systems.

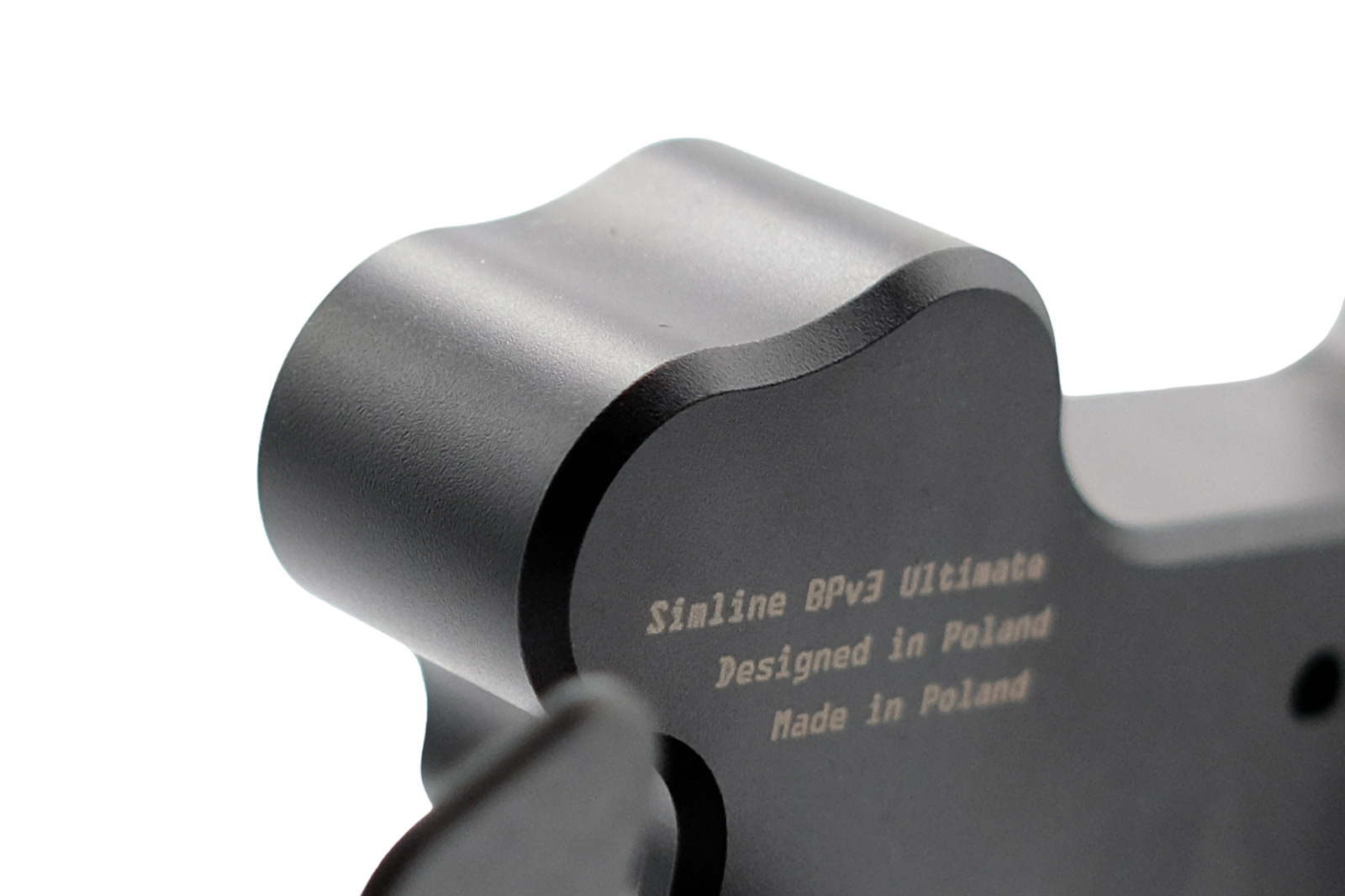

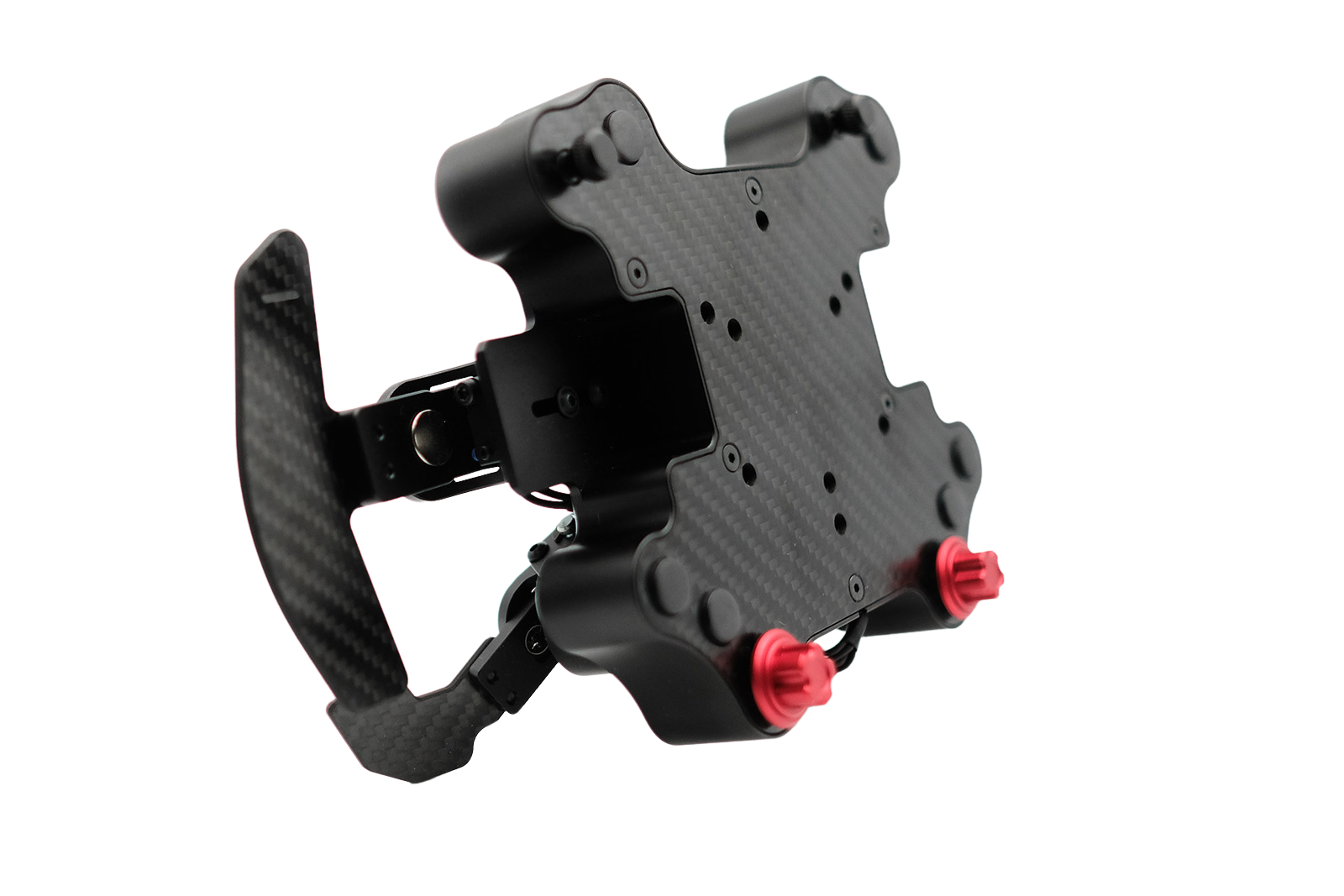

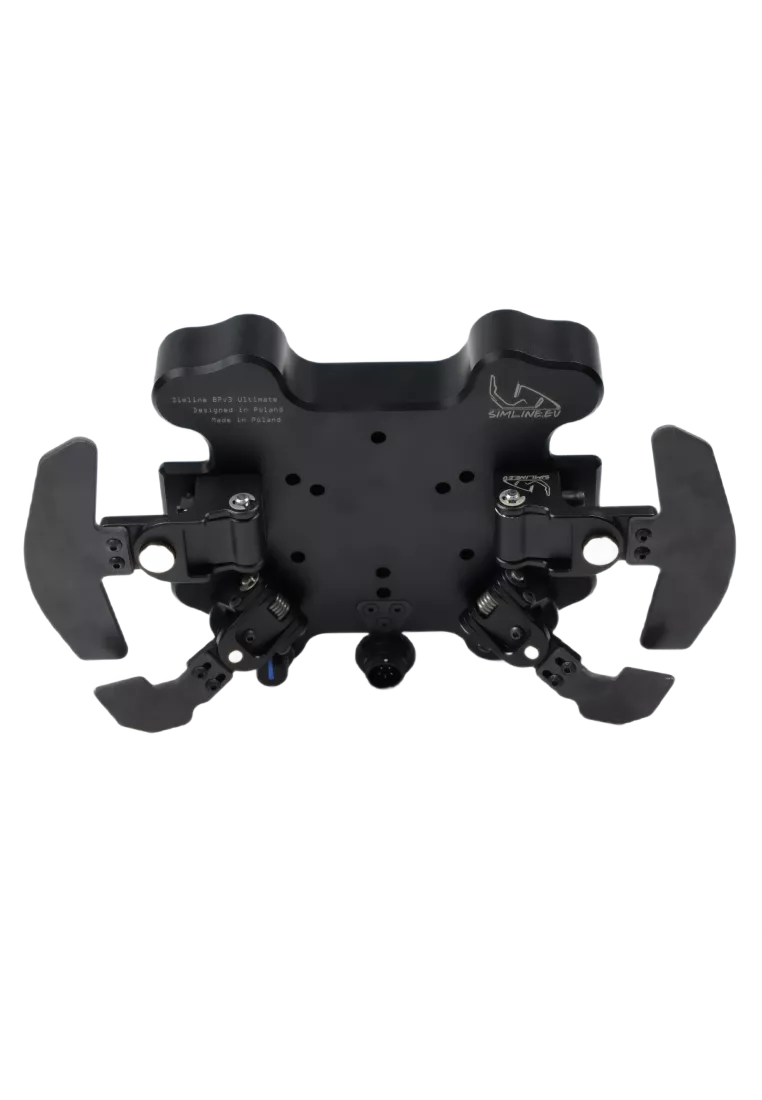

    The construction is made of aluminum and carbon fiber.

    Crafted using CNC technology from a single piece of aluminum, the housing ensures complete rigidity to this Button Plate. The front made of genuine carbon fiber and the paddles undoubtedly emphasize the motorsport character of this device.

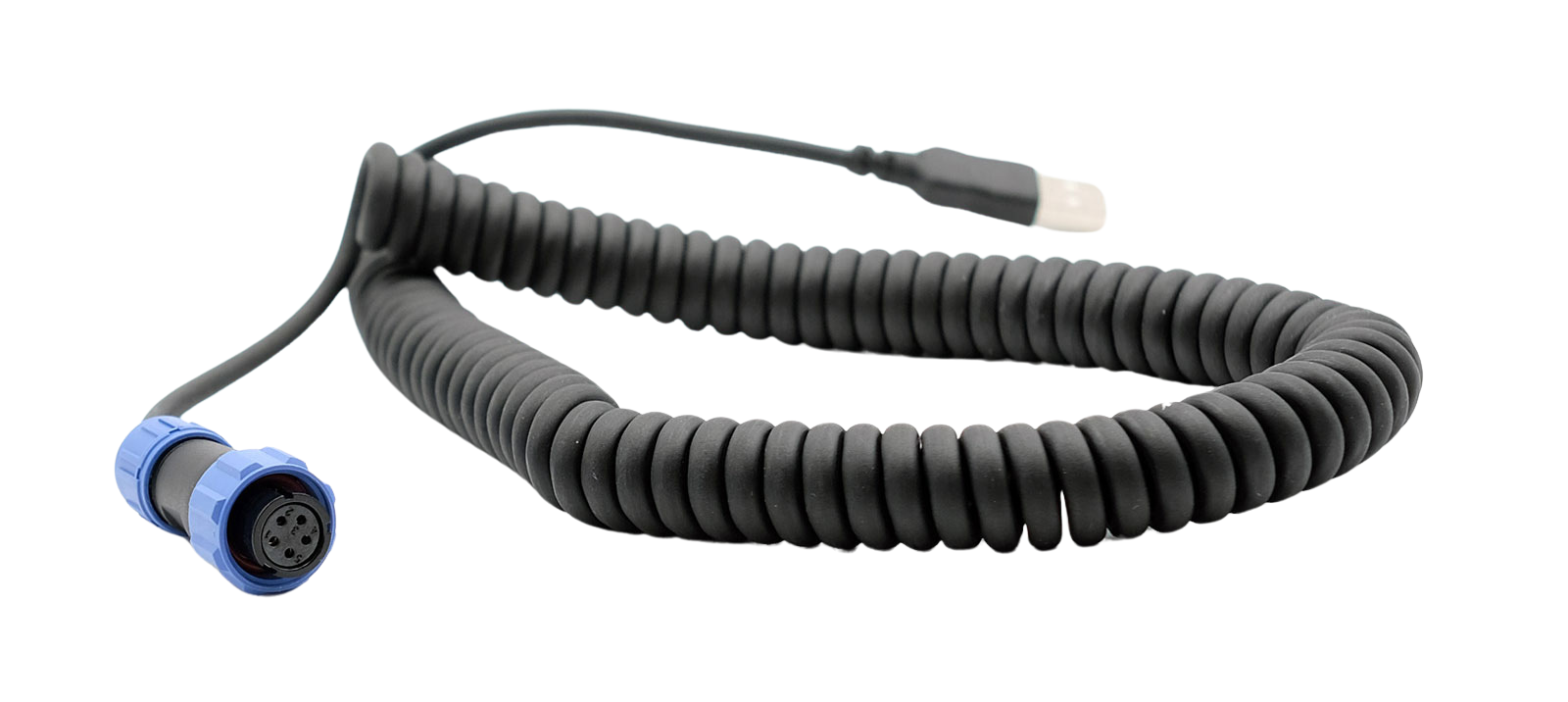

    Spiral/Coil cable

    Premium spiral cable in USB version, and standard cable in SC2 Wireless version. In the wireless version, the cable is used only for device charging.

    SC2 Wireless

    The SC2 Wireless version features a built-in Li-Po battery that requires charging, but don't worry, you'd be more concerned about remembering where you left the charging cable than running out of power during a race. Power consumption depends on the frequency of clutch usage; the base will audibly notify you when charging is needed soon, and there's also an indicator LED hidden in one of the lower buttons. The switch is well hidden at the bottom of the BPv3.

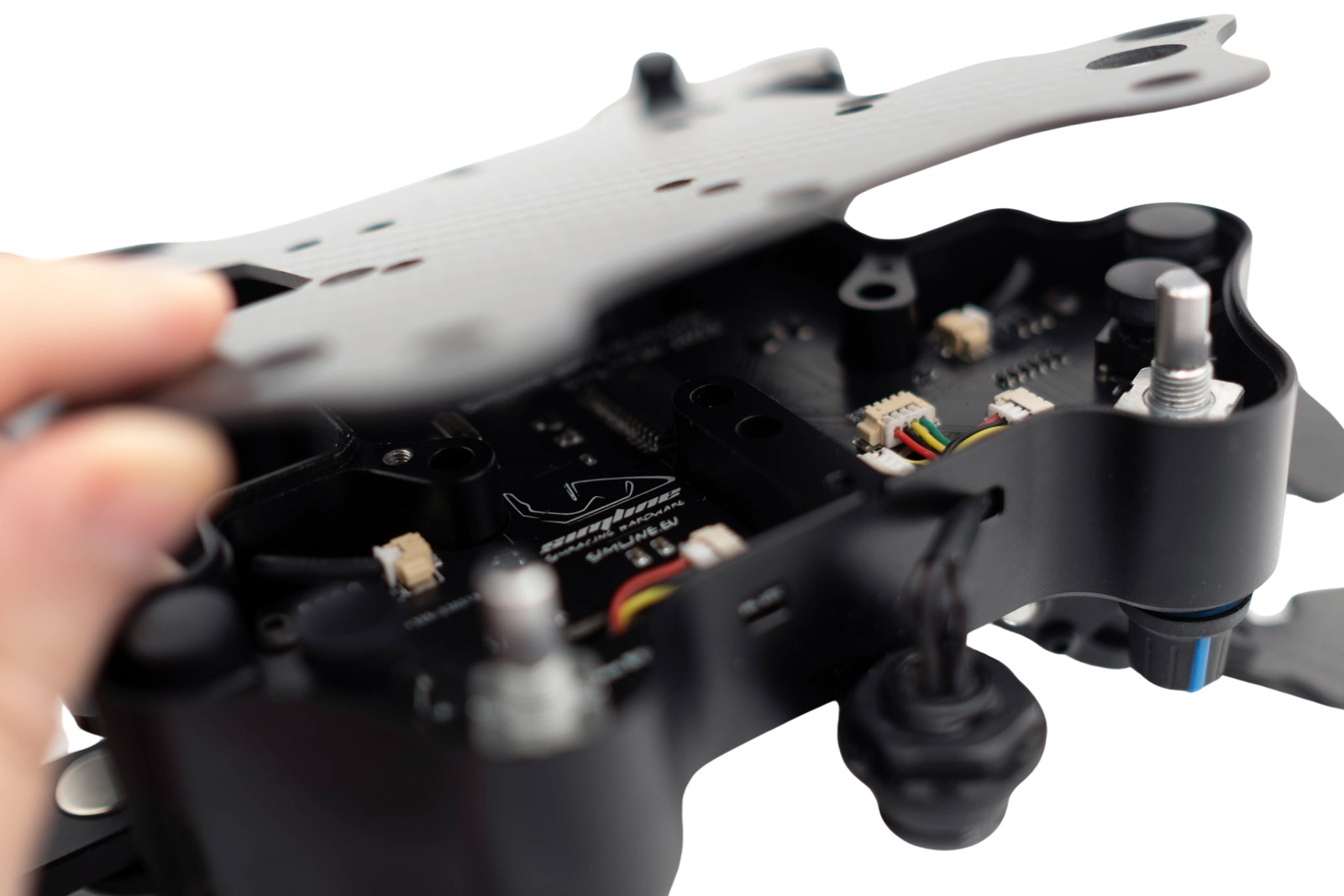

    Dedicated electronics

    Dedicated electronics in the USB version developed in collaboration with the foremost specialist in sim racing controllers, namely British company LEOBODNAR. In the wireless version, it's developed with Granite Devices, the manufacturer of Simucube.

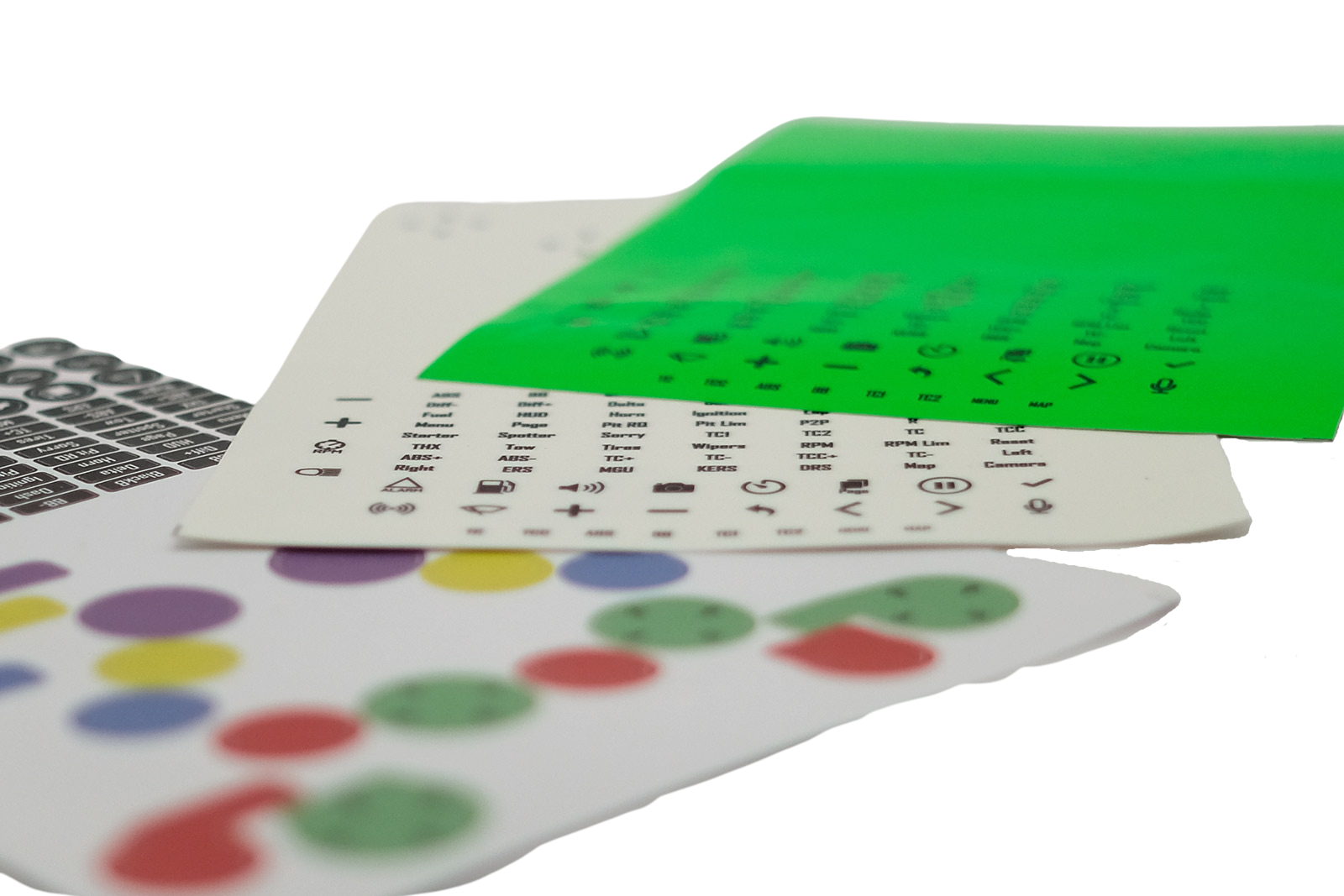

    3 sets of stickers

    Compatible with each other, 3 sets of stickers in color, fluorescent green, and photoluminescent variants, meaning they glow in the dark.

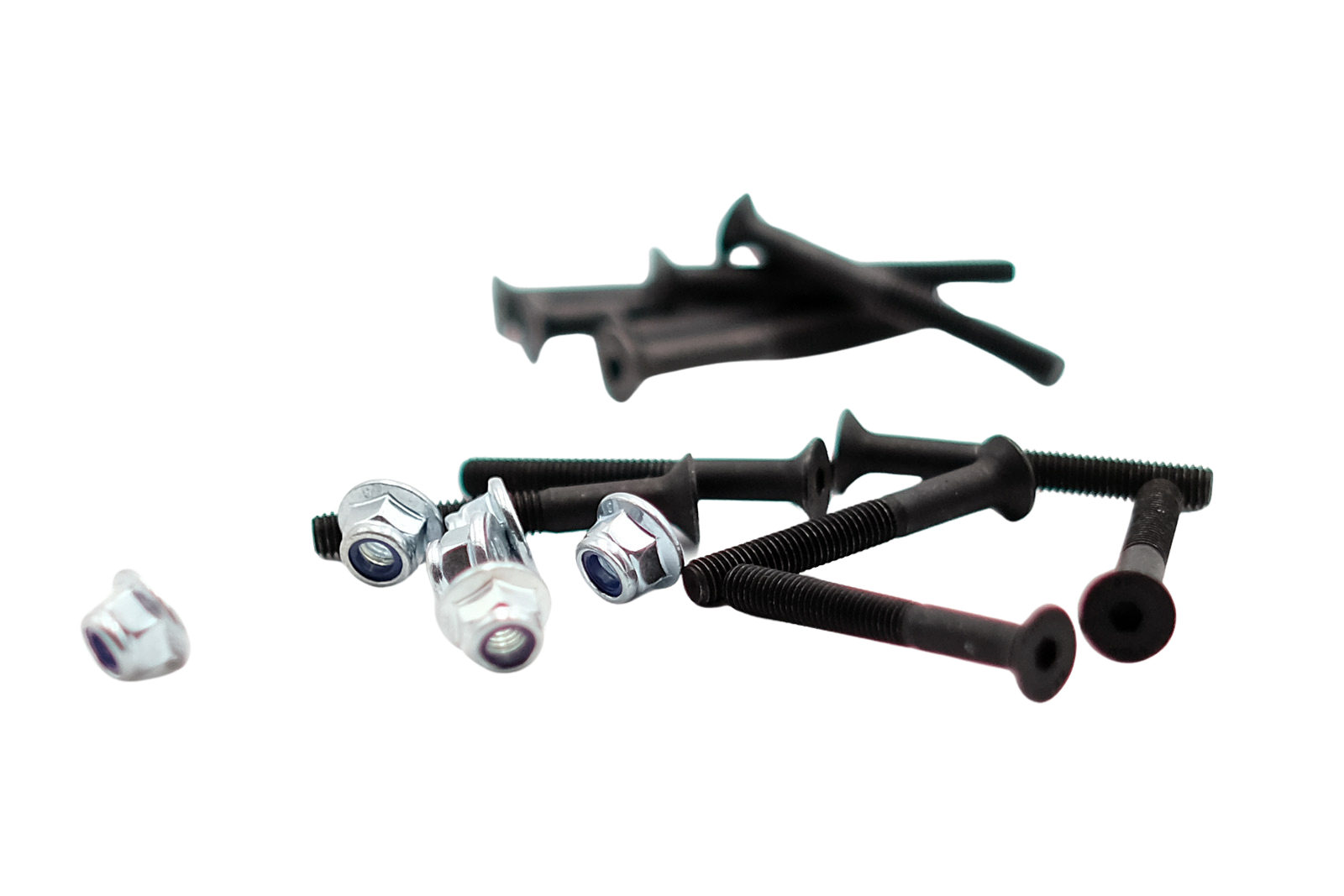

    2 sets of screws included.

    6 pieces of M5x40 screws for threaded QR and 6 pieces of M5x45 screws with nuts for non-threaded QR.

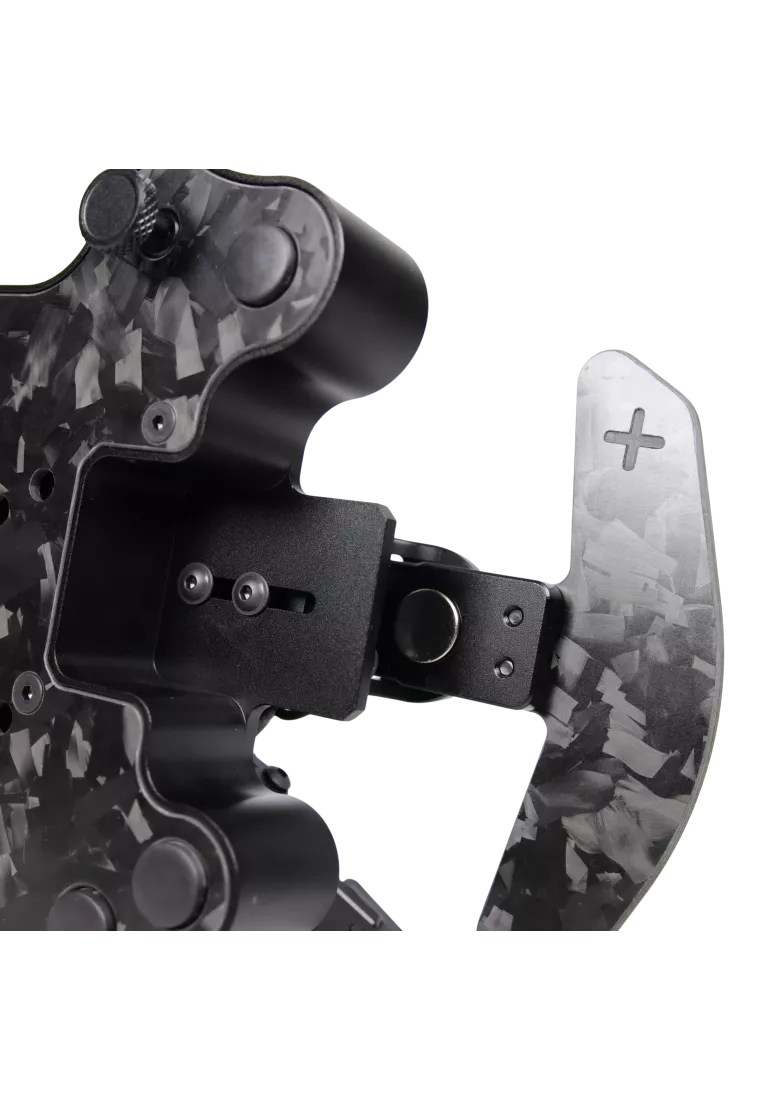

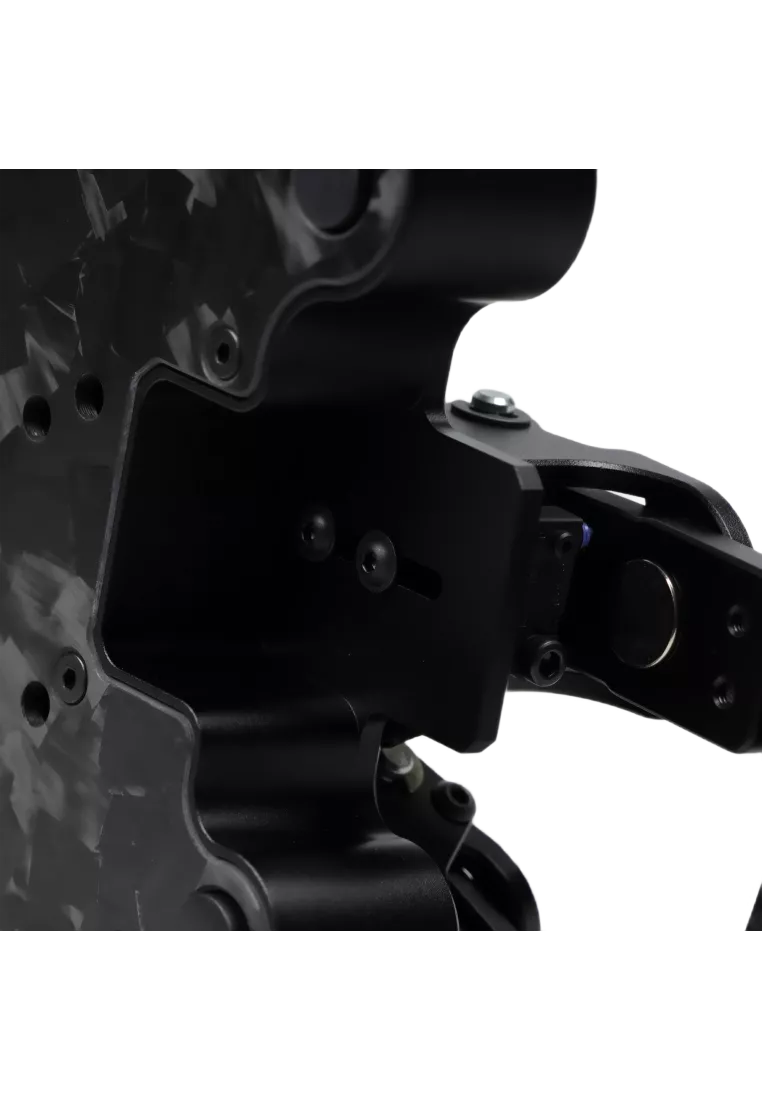

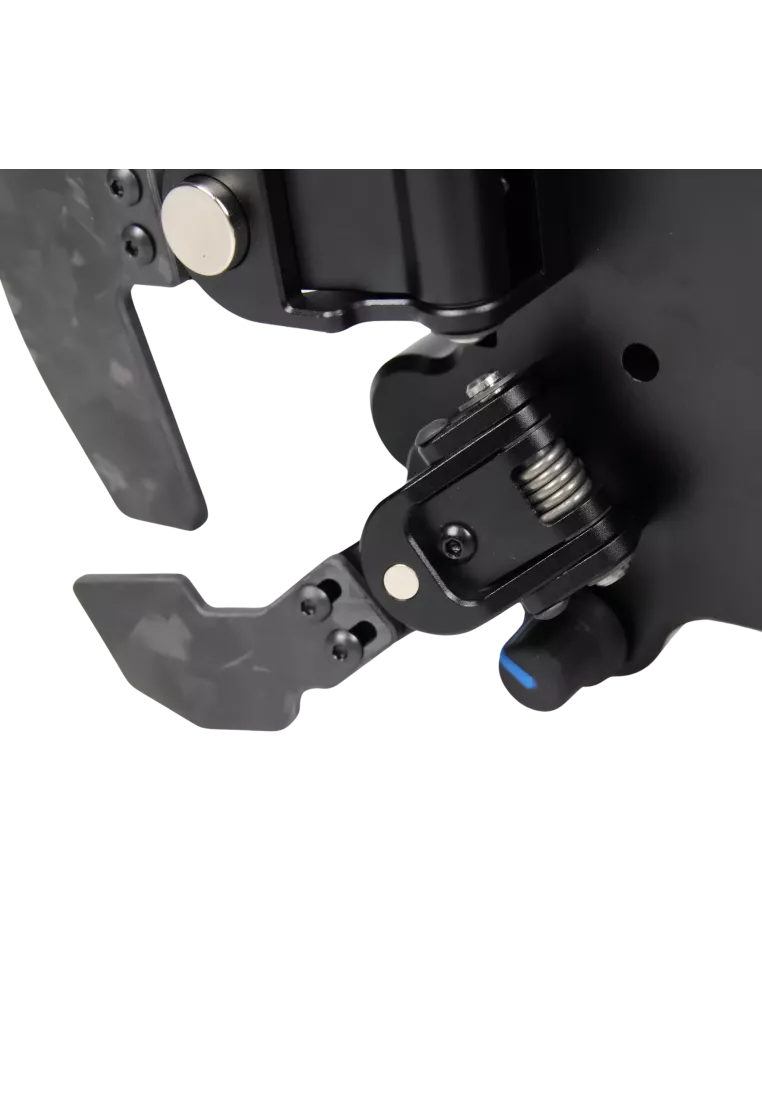

    Adjustable shifters and clutches.

    Adjustable shifters allow you to adjust their spacing to fit steering wheels between 28-35 cm.

    Any QRs

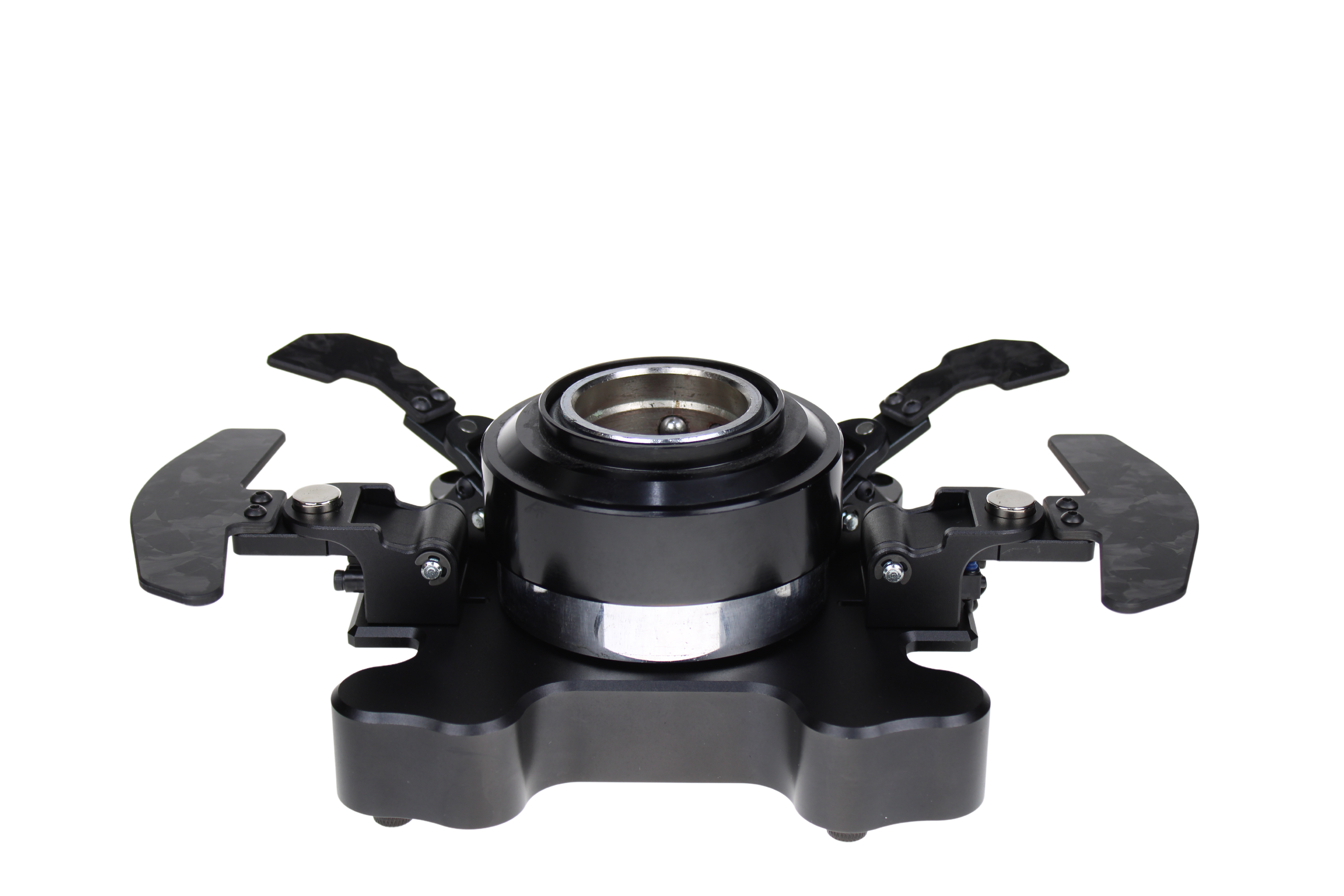

    Compatible with any Quick Release (QR) we found on the market, the only condition being a PCD of 6x70 or 3x50.8.

    Image alt
    Image alt
    Image alt
    Image alt
    Image alt
    Image alt

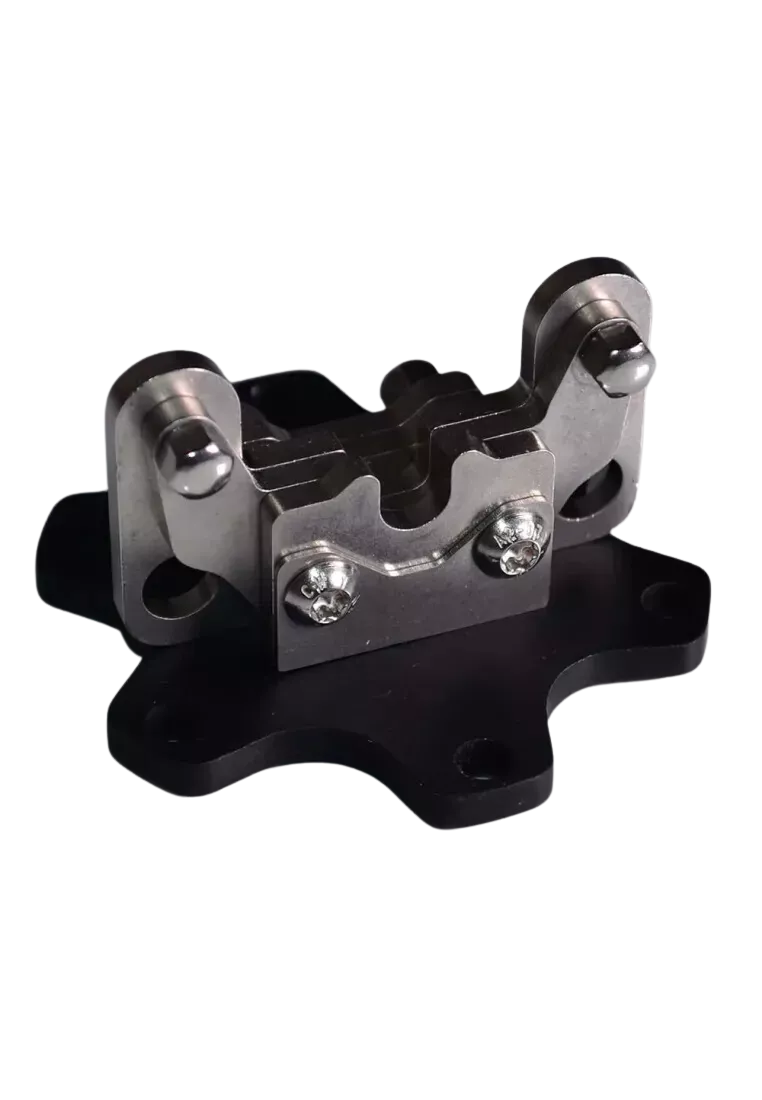

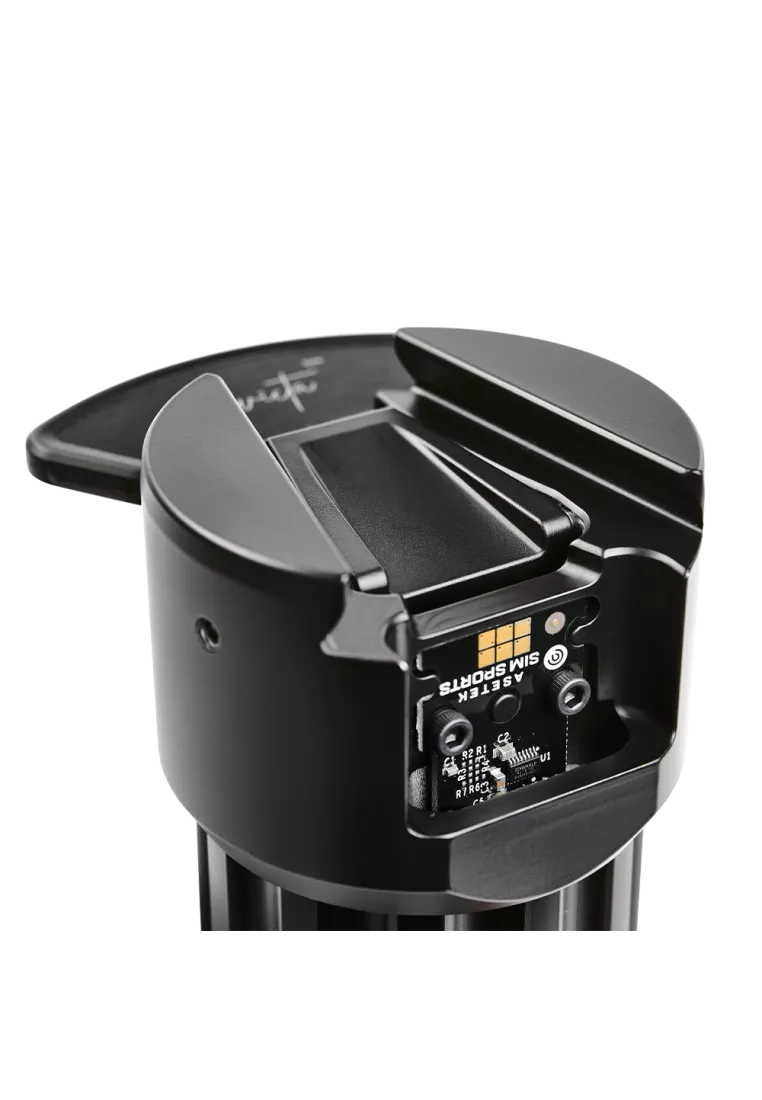

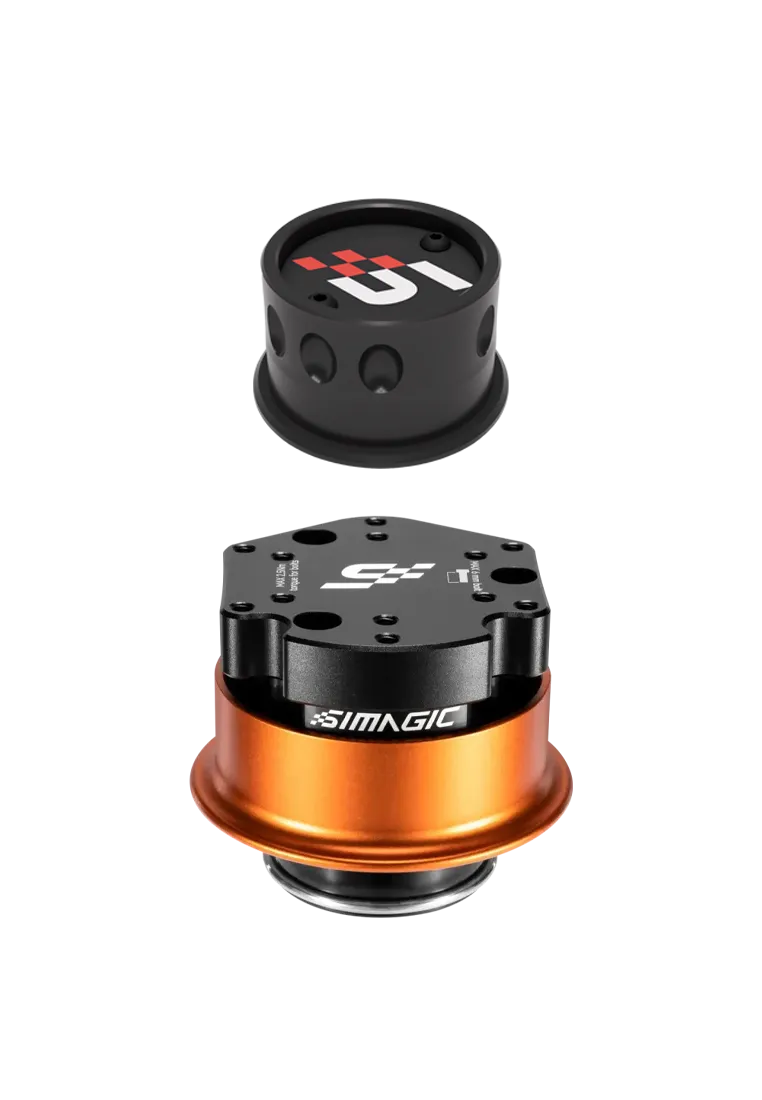

    QRs from our shop:

    Buttons quantity
    6
    Funky switch
    Yes
    Dual Clutch
    Yes
    Rotaries quantity
    2
    Thumbs rotaries
    No
    Communication
    SC2 Wireless
    USB
    Display
    No
    Backlit buttons
    No
    RPM Leds
    No
