Heusinkveld Ultimate+
    Heusinkveld Ultimate+

    Heusinkveld Ultimate+

    HE-SPU
    4,062.01zł

    4,062.01zł

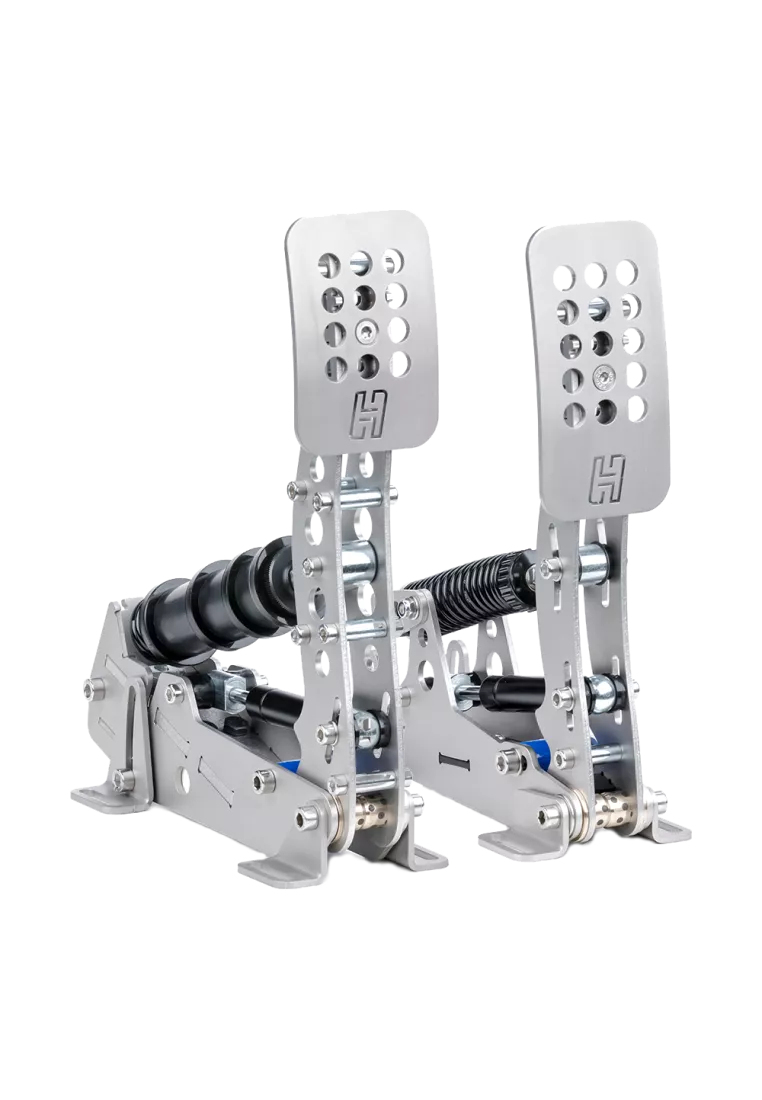

    Heusinkveld Sim Pedals Ultimate+ are designed for high-end motorsport simulators. They feature a durable, adjustable design that can handle up to 140 kg of braking force (200 kg load cell). Each pedal has hydraulic damping and custom elastomers for progressive brake feel. Load cell sensors paired with SmartControl software provide instant, accurate response and endless possibilities to customize pedal output.

    Variant
    • 2-pedal set (no clutch)
    • 3 pedals
    • Only clutch
    Pedals version


    Ask about product
    Zapytanie dotyczy produktu: Heusinkveld Ultimate+
    * - pola obowiązkowe
    Send
    You will receive an 40.62zł for each item of this product to use on your next purchase.
    Close
    Shipping within 24 hours
    Secure payments
    Return within 14 days
    Delivery from PLN 0

    You might also like



    Heusinkveld Ultimate+

    For Professional Motorsport Simulators

    Hydraulic Damping

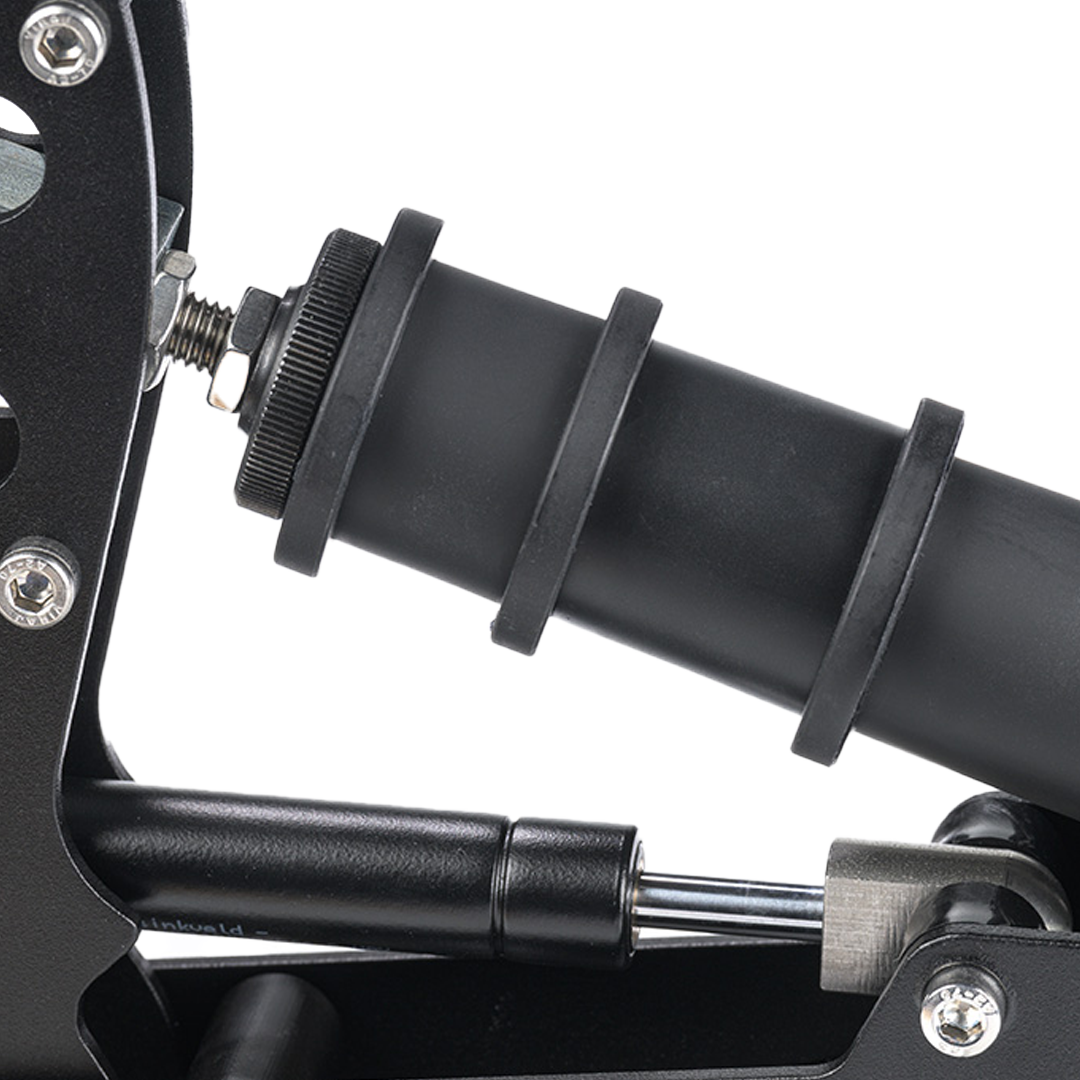

    The bespoke hydraulic dampers of the Sim Pedals Ultimate
    are ultra-reliable and do not require periodic maintenance.
    Even in the unlikely case of a failure,
    all hydraulic dampers can easily be removed while the pedal still retains its basic
    functionality as the pedal sensors are separated from the hydraulic circuit.

    Highest Quality

    Designed with CAD and FEA, all structural parts are CNC precision
    laser cut stainless steel with a glass bead blasted finish.
    The pedals are strong, stiff, compact and durable.

    Clutch

    A clutch feels lighter towards the end of travel. The Sim Pedals Ultimate+ clutch features a regressive spring mechanism simulating this concave force curve and also allows you to greatly adjust the pedal resistance, travel and feel.

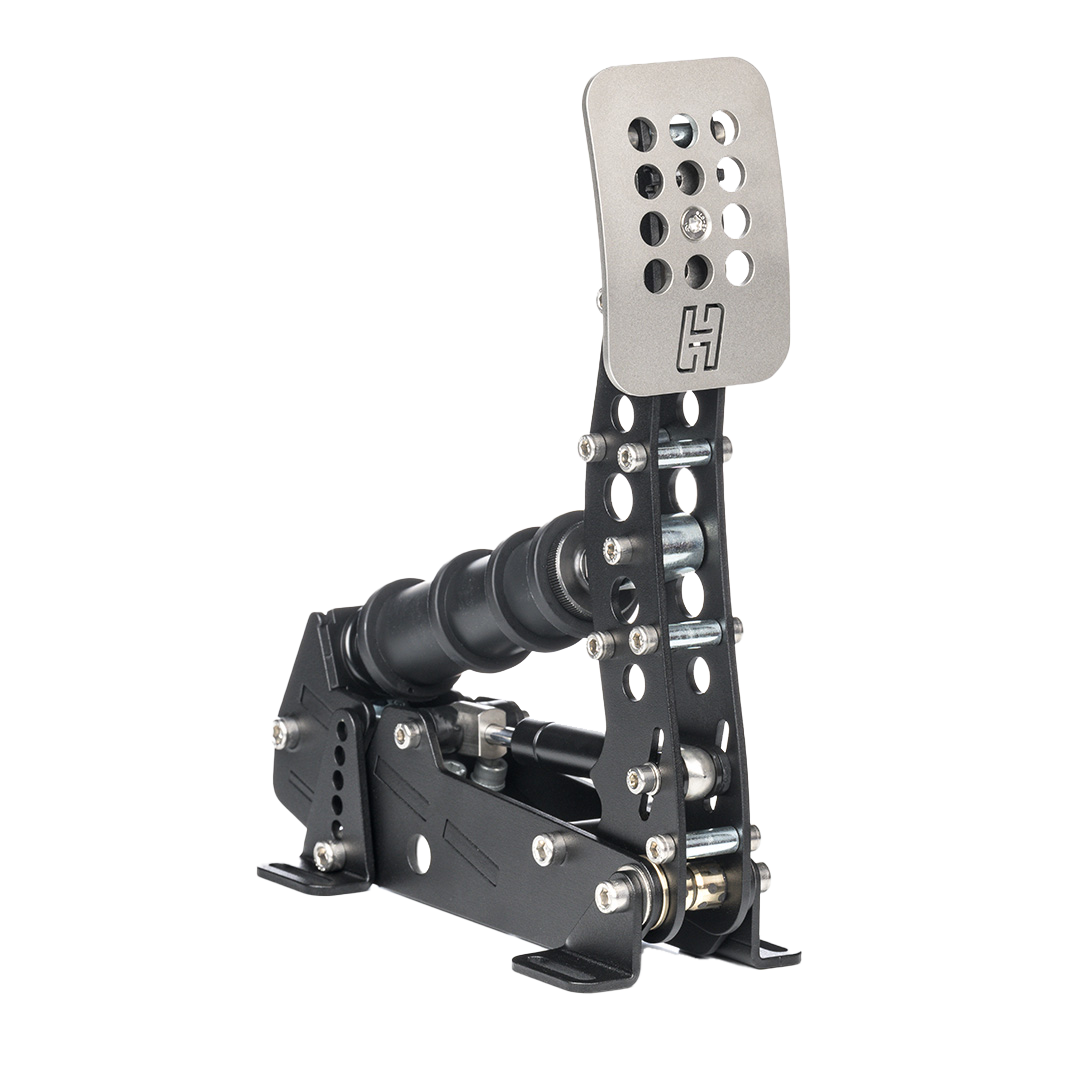

    Brake

    The brake features a realistic dual stage brake system with a 200kg load cell, capable of handling actual pedal forces up to 140kg (measured at the pedal footplate). The adjustable coil spring simulates the initial pad-to-disc gap. The main brake springs are all new custom made Heusinkveld injection molded thermoset elastomers.

    Throttle

    Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control with exactly the travel, spring preload and resistance you prefer.

    Professional Environment

    For professional driver training. For home use (eg. eSports simulators, simracing enthusiasts). In commercial applications (eg. rental simulators).

    Sensors And Output

    The Sim Pedals Ultimate+ load cell assemblies provide a true linear input measurement of throttle and clutch position and brake force.

    Installation

    Please note that these pedals cannot be installed on a floor without further support, or in a wheel stand where there is no solid connection between the pedals in the seat. A full frame rig/simulator is always required for the Sim Pedals Ultimate+, even if you use the optional Sim Pedals Ultimate+ Baseplate.

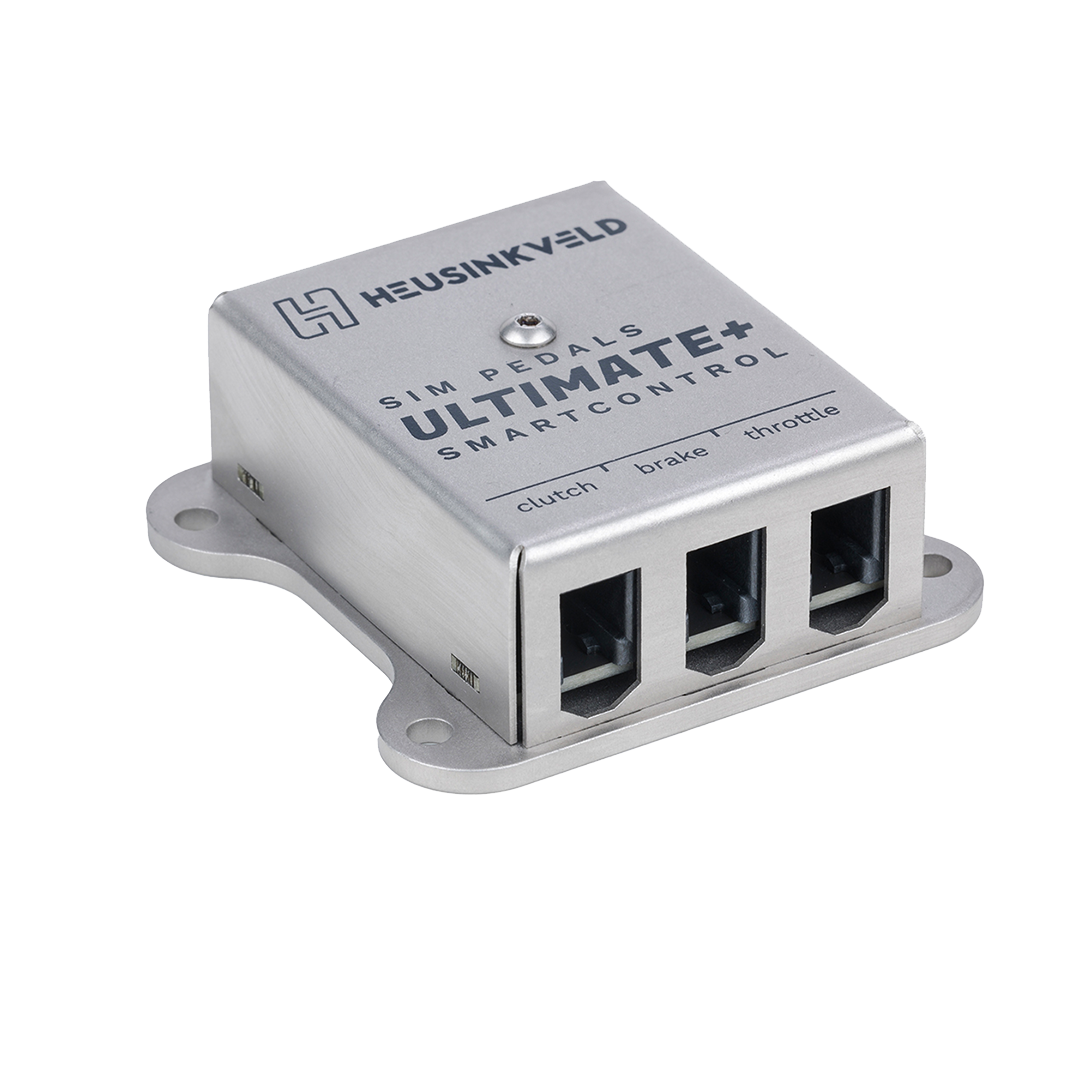

    Smartcontrol Live: Configuration Tool

    Our Heusinkveld Ultimate+ come with a powerful configuration tool allowing you to set up your pedals in ways not previously possible: SmartControl. Working together with our own electronics platform, SmartControl allows for instant mapping of (non-linear) pedal output curves, pedal deadzones and brake pedal force.
    Image alt
    Image alt
    Image alt

    Direct Drive Wheelbases:

    Brake Sensor
    LC 200 kg
    Throttle Sensor
    Load Cell
    Clutch sensor
    Load Cell
    Pedals variant
    2 pedals
    3 pedals
    Only clutch
    HE-SPU

    Primary Material   Stainless Steel
    Secondary MaterialAluminum
    Adjustable AngleYes
    Driver Customisation   Yes
    Mounting80/20 Beams or 3rd party mounts
    • Wrench
