Simline BU0836A Break out Matrix board

A small additional board that provides easy matrix layout for the BU0836A.

LEDs are already connected on the back of the board.

Simple connection for buttons and encoders.

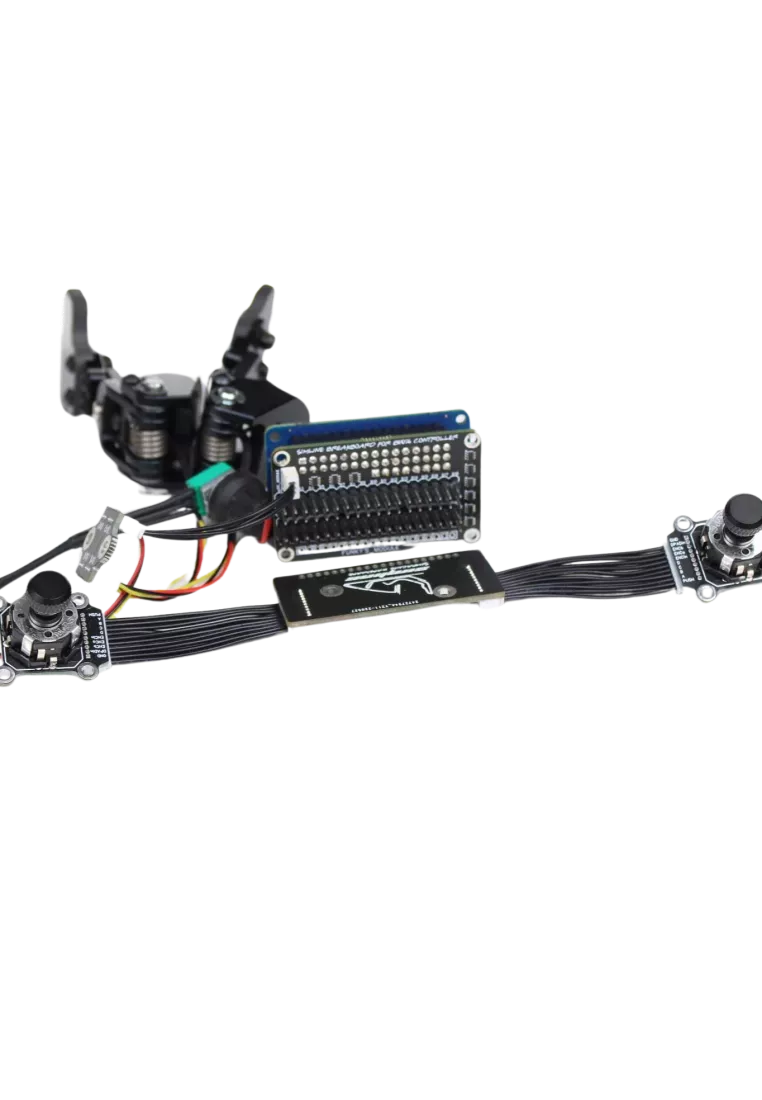

Easy connection to our Dual Funky module and our dual clutch system.

Allows easy connection of more than 12 buttons without additional diodes.

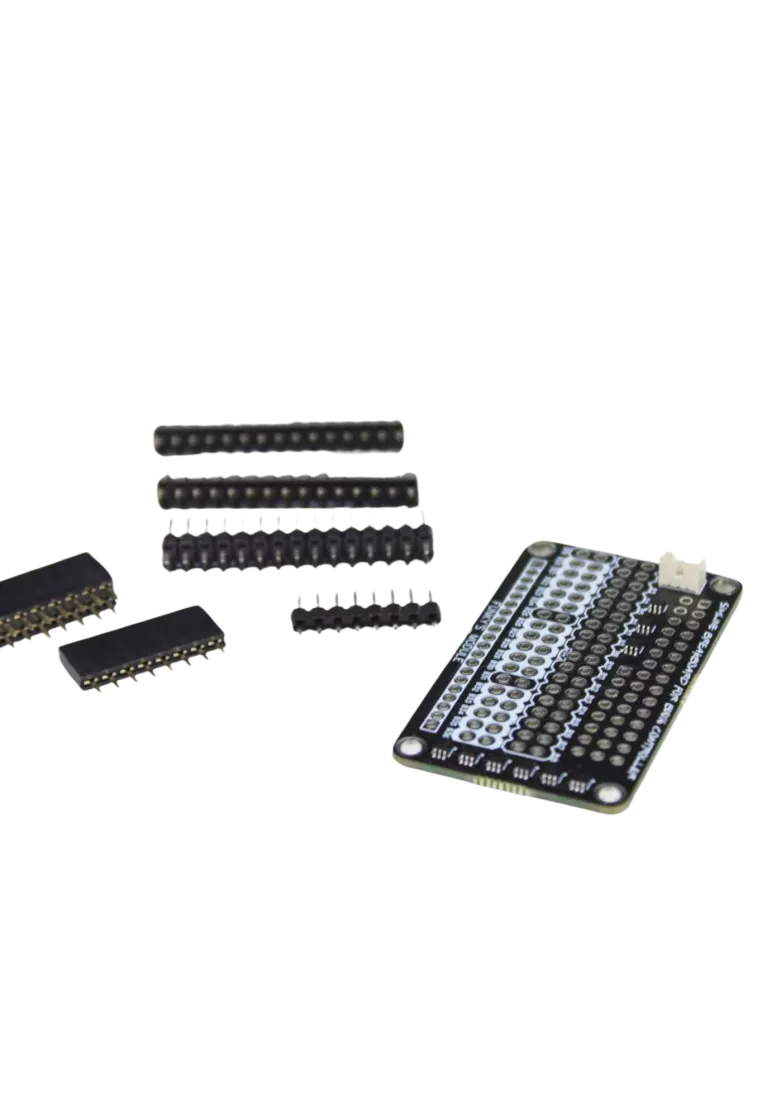

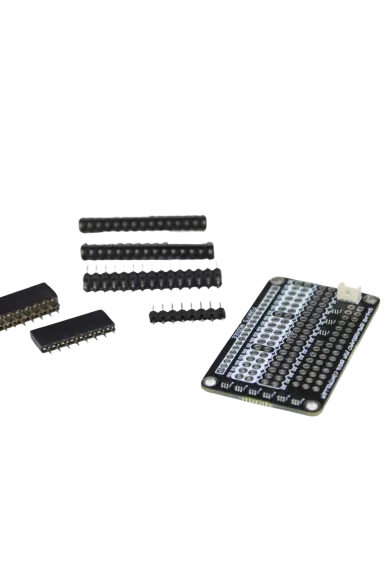

Supplied with a connector that plugs into the BU0836A and two rows of pin connectors.

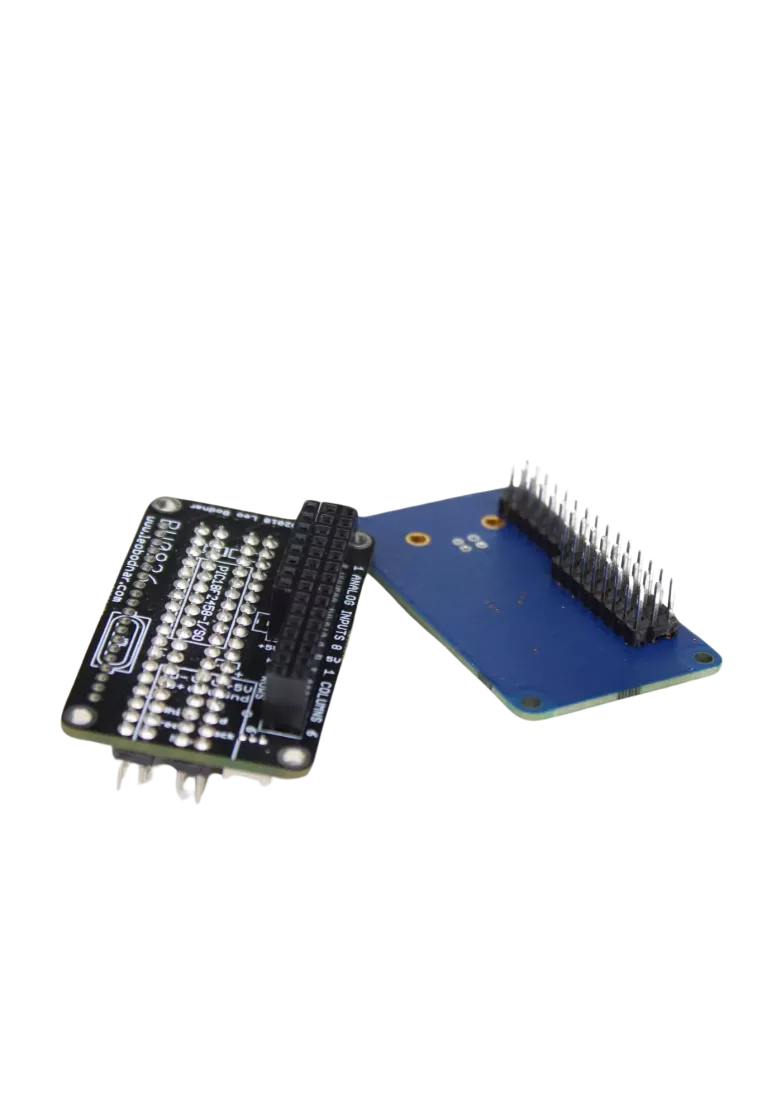

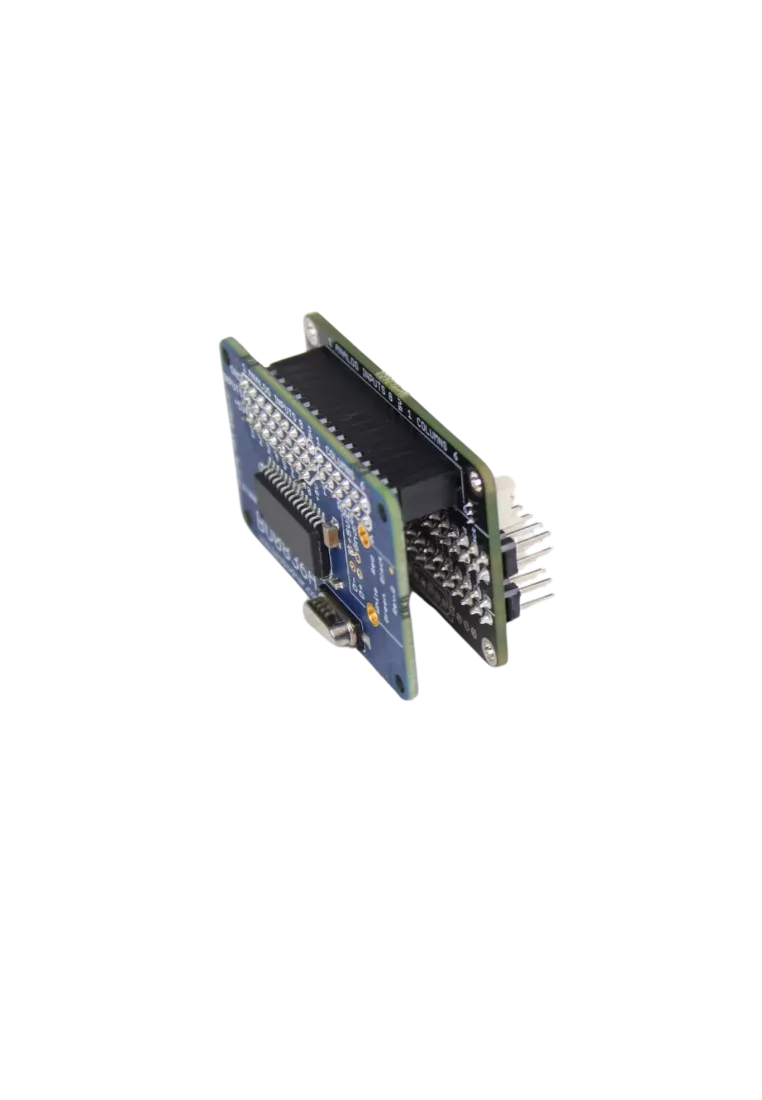

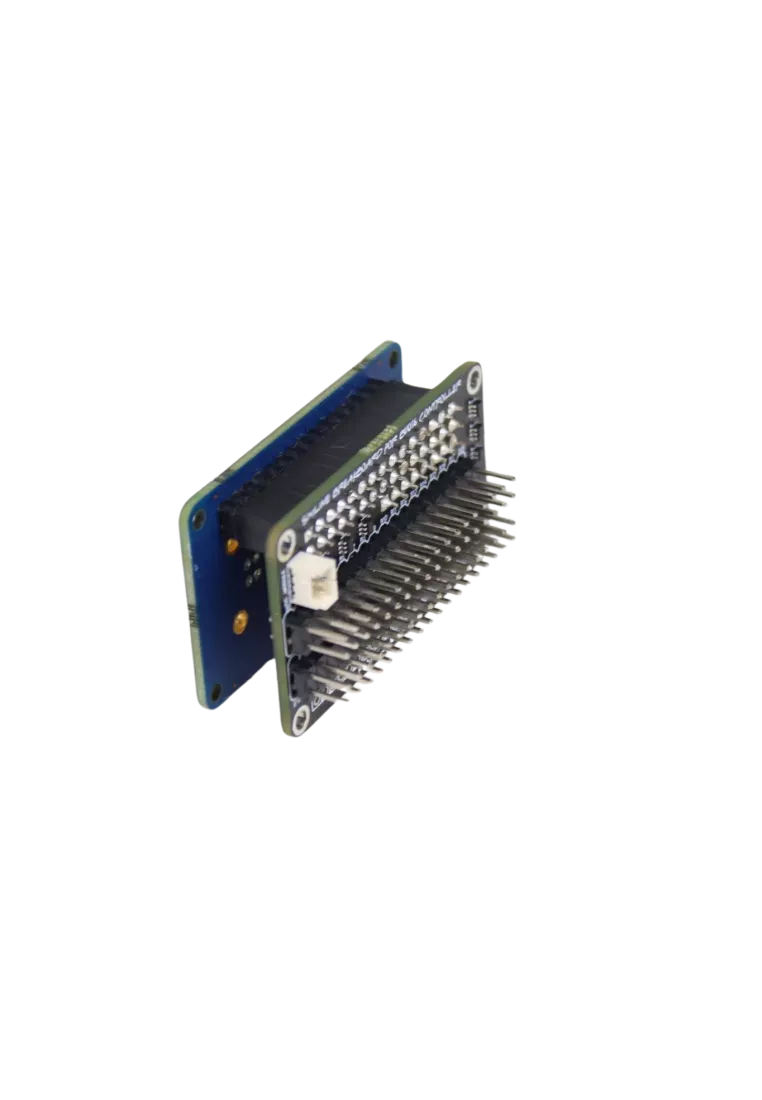

Designed for direct mounting on the bottom of the BU0836A board. Alternatively, it can be connected to the BU0836A using a 12-wire cable.

32 simultaneously active button inputs. The last 4 contacts create an 8-direction switch (coolie) point-of-view hat.

Ideal for compact button panels.

White areas are used by the Dual Funky module. If you are not using our DFM module, you can use them as any other port.
