BU0836A-NC 12-Bit Controller

Name: BU0836A-NC 12-Bit Controller
Brand: Leo Bodnar
SKU: leo_BU0836A
Price: 150 PLN
Availability: OutOfStock

Reference leo_BU0836A

150.00zł

The Micro-BBI is our smallest USB board, with 20 button inputs and 1 analogue input. Build your own device with USB connectivity, this board is ideal for projects which need to fit in a very small space.

Ask about product

You will receive an 1.50zł for each item of this product to use on your next purchase.

Shipping within 24 hours

Secure payments

Return within 14 days

Delivery from PLN 0

Product Description

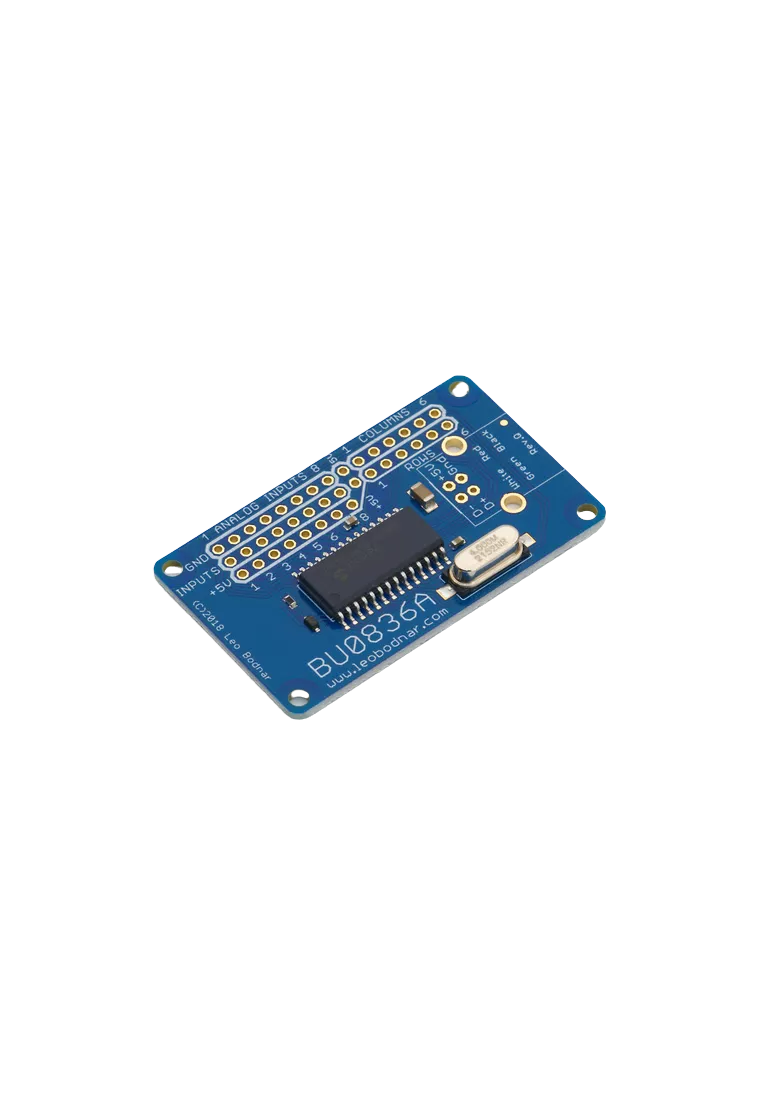

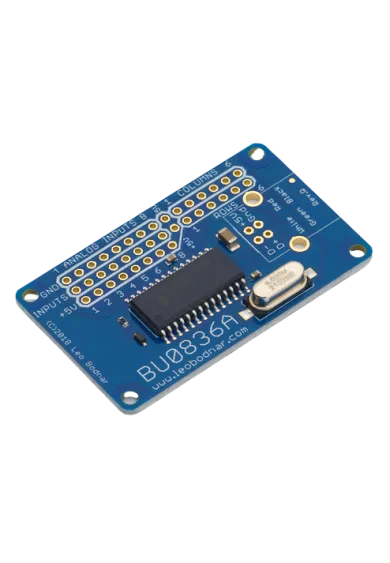

Low profile version of the BU0836A. Exactly the same features but without the pin headers or USB socket.Solder directly to the board or add you own pin headers (2.54mm pitch) where required.

A small USB joystick interface board with solder tabs to connect buttons, potentiometers, sensors, rotary encoders and switches to a PC or Mac.

Build your own gaming device, whether it be a flight panel, button box, pedals, joystick, robot controls and more......the list is limited by your imagination.

Also suitable for converting gameport devices or connecting real life controls to turn them into a USB device suitable to be used by almost any simulation or game software without the need of installing any drivers.

Inputs

8 analog inputs with 12-bit (4096 steps) resolution each

32 button / 16 rotary encoder inputs

8-way "point-of-view" hat switch input

Dimensions

Length	2.2" / 55mm
Width	1.25" / 32mm
Height	0.22" / 5.6mm
Recommended Wire Size	24AWG to 20AWG
Mounting Screw Hole Size	M2.5 or #3-56 - DO NOT ENLARGE THE MOUNTING HOLES

Connection to PC
The PCB is designed to solder wires directly to the solder tabs or to connect a standard USB B type connector for connection to PC or Mac. No drivers are required. Plug it in and use straight away.

Manufactured by: Leo Bodnar

MPN leo_microbbi

More Details

Fully self-contained interface

Natively supported by Windows 11/10/8/7/Vista/XP/2000, 32 and 64-bit and Mac OS X. Also works on Android devices via USB link. - Forget drivers - just plug it in and it's ready to go.

Unique serial number helps Windows remember each device - Ever unplugged a joystick and had Windows lose calibration settings? This controller retains settings even if plugged in a different USB port or if you use two and swap them over.
Also allows you to connect and use more than one at a time.

Analog inputs filtering - Digital processing removes noise from axes position reports while preserving extremely fast response.

Powered by USB bus (+5V - 500mA) so no external power supply is needed.

Full-speed 12Mb USB connection.

Compatible with any game that can detect and use generic joysticks - MS Flight Simulator, X-Plane, rFactor, iRacing and other driving Games etc.

Proudly designed and made in the UK.
